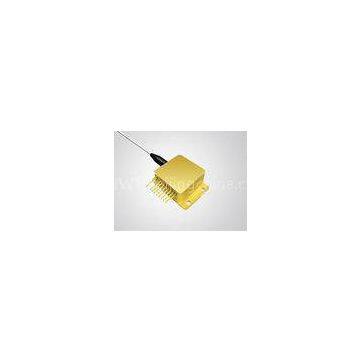

665nm/ 800mW High Stability HHL Package Fiber Coupled Red Diode Laser Module
Features:
output power 800mW fiber core diameter 105µm , 200µm 0.22N.A. wavelength 660nm~690nmApplications:
Medical use Biochemical analysis|
Specifications(20℃) |
Symbol |
Unit |
K660E09F- 0.80W |
K665E09F- 0.80W |
K680E09F- 0.80W |
K690E09F- 0.80W |
| Optical Data |
CW-Output Power |
Po |
mW |
800 |
||
|
Center Wavelength |
λc |
nm |
660 |
665 |
680 |
690 |
|
Tolerance of λ |
- |
nm |
±5 |
|||
|
Spectral Width (FWHM) |
△λ |
nm |
<3 |
|||
|
Temperature Drift of λ |
- |
nm/℃ |
~0.2 |
|||
|
Fiber Data(1) |
Fiber core Diameter |
Wc |
µm |
105/200 |
||
|
Numerical Aperture |
N.A. |
- |
0.22 |
|||
|
Fiber Connector |
- |
- |
SMA-905 |
|||
|
Electrical Data |
Operating Current |
Iop |
A |
1.6 |
||
|
Threshold Current |
Ith |
A |
0.52 |
|||
|
Conversion Efficiency |
η |
% |
20~26 |
|||
|
Slope Efficiency |
ηD |
W/A |
0.7~0.8 |
|||
|
Operating Voltage |
Vop |
V |
2.1 |
|||
|
Reverse Voltage |
Vre |
V |
2.0 |
|||
| PD Data |
Current |
Imo |
µA |
200~2000 |
||
|
TEC Data |
Max. Current |
It |
A |
4 |
||
|
Max. Voltage |
Vt |
V |
9.8 |
|||
|
Thermistor Data (2) |
Thermistor |
Rt |
(K Ω)/β(25℃) |
10±5%/3477 |
||
|
|
