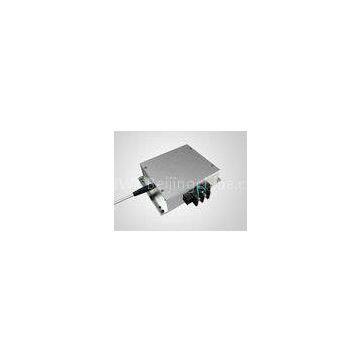

976nm 10W 400m Fiber Bundled Medical Diode Laser K976F02MN-10.00W for Medical Use

FOB Price

Negotiable / Piece

1 Piece(Min.Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Brand Name	BWT		Place of Origin	China
Model Number	K976F02MN-10.00W

Delivery Time:4-8weeks
Certification:ISO9001

10W 976nm 400µm Fiber Bundled Medical Diode Laser K976F02MN-10.00W for Medical Use

Features:

output power 10W, 15W 375µm fiber bundle diameter 0.22N.A. 976nm wavelength 650nm aiming beam (optional) Single 400µm core fiber output (optional)

Applications:

Medical use Laser pumping Illumination Material processing

Specifications(25℃)	Symbol	Unit	K976F02MN-10.00W	K976F02MN-15.00W
Optical Data	CW-Output Power(1)	P0	W	10	15
Center Wavelength	λc	nm	976
Tolerance of λ	-	nm	±10
Temperature Drift of λ	-	nm/℃	~0.3
Fiber Data(2)	Fiber Core Diameter	Wc	µm	375
Numerical Aperture	N.A.	-	0.22
Fiber Connector	-	-	SMA-905
Electrical Data	Operating Current	Iop	A	3.6	3.8
Threshold Current	Ith	A	0.3
Conversion Efficiency	η	%	40
Slope Efficiency	ηD	W/A	2.9	4.7
Operating Voltage	Vop	V	~6.0	~10.0
Reverse Voltage	Vre	V	~6.0	~10.0
Others	Operating Temperature	Top	℃	10~30
Storage Temperature	Tst	℃	-20~+80
Expected Lifetime	MTTF	h	>10, 000
Dimensions (fiber and connector not included)	-	mm	123×80×25
Weight	-	g	~600

(1) All LDs inside are connected in serial.

(2) Other fibers available.
