SPD TUV CE Solar Array Junction Box Photovoltaic For Solar Inverter
- 0 Piece / Pieces per Month
- T/T L/C D/P D/A
- 7 days
You May Like
-
IP65 Outdoor Solar Array Junction Box 1000V DC , PV Combiner Box
-
1000V DC 10A Waterprood Solar Array Junction Box TUV CE , 2 - 12 Strings
-
IP65 Solar PV Array Combiner Box 1000V DC With Radiation Proof
-
Ultraviolet PV Solar Array Junction Box IP65 10A , Photovoltaic Combiner Box
-
1000V DC Transparent Smart Combiner Box 10A PC ABS For PV Solar Power
-
Simplex ST Fiber Optic Terminal Box with 12port Rack Mounted Structure
Product Details
Brand Name | Longmax | Place of Origin | China | |
Model Number | CE TUV CQC |
Product Description
Certification:TUV|CE|CCC

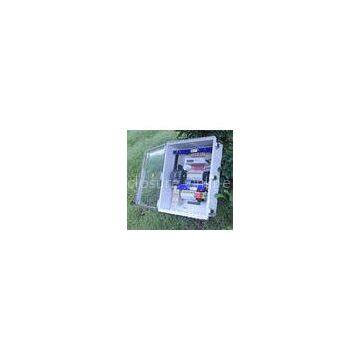

SPD TUV CE Solar Array Junction Box Photovoltaic For Solar Inverter
Anti UV,ultraviolet radiation proof PV inverter connnector,Outdoor use long life ultraviolet radiation proof PV panel wire connection box,flame-resistant fire protection solar module junction boxes 2 strings
Quick Detail:
Wide range DC input, the maximum open circuit voltage reaches 1000VDC
Remote monitor, RS485 communication optional
Simplify PV system wiring
Comply with the requirement of outdoor installation
PV only DC fuse
PV only SPD
Customized on customer\'s demand
Specifications:
In a large photovoltaic (PV) grid generation system, it is generally to install a DC combining device between the PV module and inverter in order to reduce the connection between PV module and inverter, facilitate maintenance and improve reliability. Our intelligent photovoltaic combiner box with SPD series are especially designed to meet the requirement, which can provide a solution for PV power generation system matching with photovoltaic inverter. According to the input voltage of the inverter, a fixed number of similar PV modules can be connected to form a PV array by using PV array combiner box. Then different channels of PV arrays can be combined into the PV combiner box. Its output can be connected to inverter by way of circuit breakers with SPD protection.
To ensure body safety and reducing the danger. Longmax solar combiner has features as below:
Meet outdoor installation requirements, the degree of protection is IP54, has the function of avoiding UV, acid and alkali, moisture, mold and rat; 12 strings of solar arrays can be input at the same time, each channel with 12A,1000Vdc (can be replaced to other level); Each positive, negative string under the fuse protection; With special high voltage PV SPD, both positive and negative pole have the function of thunder and lightning; Use photovoltaic circuit breaker;
Technical Data
Max input modules channels |
2-12 strings |
Input array connection diameter |
4mm² |
Output and ground diameter |
≤70mm²(ground wire 16mm²) |
Internal fuse rating |
1000V dc fuse,12A |
Input current of each channel |
10A |
Communication connection |
RS485 |
Communication power supply requirements |
Self-power |
Waterproof level of the box |
IP65 |
Model |
LONGMAX-SCB-2 |
Enclosure Color |
Optional, Multi choice |
Guarantee |
2-5 years(2 years standard warranty ,can be extended into 5 years) |
Certification |
TUV, CE, CCC |
Loading port |
Shanghai port China (mainland) |
Install:
Install the Box on the wall or Photovoltaic bracket
With 4 M8*30 Stainless steel screws (screw level 8.8)
Open all fuse holder before connecting
Status of breaker:Off
Distinguish positive pole cable &negative pole cable
Connected to the Inverter
Use cross screwdriver (Tightening torque, min. 2Nm, max. 2.5Nm)
Before closed fuse holders, make sure the open circuit voltage equal to every road ,the differ is ±30VDC.
2. Each SCB cables to Inverter must be all the same, cannot appear positive, negative reversal.
3. Operation of the circuit breaker:
Project: Siziwangqi , Inner Mongolia 60MW PV Power plant
Item: PV intelligent Solar Combiner Box
Quantity: 425 units
Project completion date: March ,2013
Detailed products:
16 strings PV intelligent solar combiner box*248 units
14 strings PV intelligent solar combiner box*64 units
12 strings PV intelligent solar combiner box*69 units
10 strings PV intelligent solar combiner box*25 units
8 strings PV intelligent solar combiner box*19 units
Competitive Advantage:
If fault occurs during the warranty period, Longmax will maintenance or replace the product for free.
¤ The original unqualified product should be returned to the manufacturer.
¤ The customer shall give the company reserve the reasonable time to repair the equi
