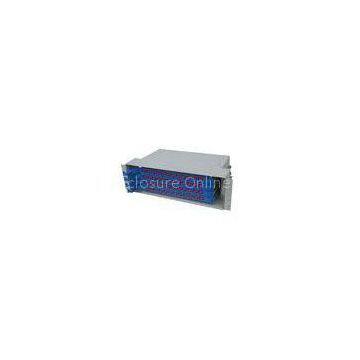

48core 3U ODF Fiber Optic Distribution Box , Rack Mounted Structure
Negotiable
1 (Min.Order)
- 0 per Month
- T/T L/C D/P D/A
- 7 days
You May Like
-
12port Fiber Optic Distribution Box , Welding Distribution Module Tray for ODF Unit Box
-
1*4 PLC Outdoor Fiber cable distribution box for SC Fiber Pigtail
-
4 port Indoor fiber distribution box , 4 fibers Customer Terminal Box
-
ABS Housing 4 Port Fiber Optic Distribution Box for Data communications networks
-
Wall and pole mountable 32Port FTTH CATV outdoor distribution box for 1*32 PLC Splitter
-
Outdoor Waterproof plastic Fiber Optic Distribution Box for PLC Splitter
Product Details
| Brand Name | TTI | Place of Origin | China | |
| Model Number | ODF-C48 |
Product Description
Certification:ROHS, SGS
48core 3U ODF Fiber Optic Distribution Box , Rack Mounted Structure
Quick Detail:
Height: 3U Max Capacity: 4pcs distribution module trays, 48core Welding & Distribution Module Integration(ODF Unit) Can be Install with Adaptors FC, SC, ST, LC… 19†Standard Structure, Rack Mounting The Case Body is made by Cold Rolled Steel Sheet with Electrostatic SprayingDescription:
ODF distribution box is also called splicing integrated Subrack, which owns function of fiber optic cable fixed, protection termination, adjusting line, cable core and pigtail protection, cable core and pigtail protection.
Feature:
It\'s suitable for ribbon or non-ribbon optical fiber cable. Can be used in 19\'\', 23\'\' standard distribution frame With splice trays in the box and integrate heat sealing and wiring into one. Apply double-sided structured optical fiber splice tray to make full use of the two sides of the board. Every tray can be clamped with 12FC/SC/ST adaptors. Applied to various optical fiber distribution frames, distribution cabinets and optical cable cross-connection cabinets.Application:
FTTX (FTTP, FTTH, FTTN, FTTC) Passive Optical Networks Local Area Networks CATV system Test EquipmentSpecification:
| Type |
Size (mm) |
Core Capacity | Core Capacity Tray |
| ODF-C12 | 480x235x1U | 12 | 12 |
| ODF-C24 | 480x235x2U | 24 | 12 |
| ODF-C48 | 480x235x3U | 48 | 12 |
| ODF-C72 | 480x235x4U | 72 | 12 |
| ODF-96 | 480x300x6U | 96 | 12 |
Shipping:
Door to Door: by express (such as DHL, UPS, TNT, FedEx etc.) Airport to Airport: by air Seaport to Seaport: by sea (our location Shenzhen is a seaport.)Contact Us
