Certification:CE, RoHS, UL, FCC, ISO
Quick Detail:
1. ≤1mm surface level up, smooth video
2. Perfect quality and stability, 24/7 running
3. IP65 Ruggedness, all-weather qualified
4. 2 years warranty
5. Long lifespan up to 100,000 hours
6. Support any format of video, RF, S-Video, RGB, RGBHV, YUV, YC, COMPOSITION

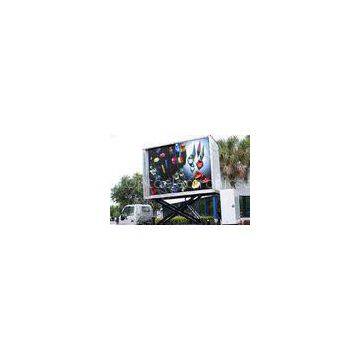

Advertising P16mm Truck Mounted LED Display Panel For Outdoor , High Contrast 8000cd/㎡
Description:
1. High viewing angle: 110°(Horizontal )/45°(Vertical )
2. Special Structure design for water-proof, dust-proof, moisture-proof, and anti-static electric
3. High Contrast.The Contrast is above 2000:1, so the viewer can have a wonderful visual
4. Outstanding consistency in color and brightness, no mosaic effects.
Applications:
Commercial advertising: Square, Road side, High way, Airport, Wharf, Hotel, Restaurant etc
Specifications:
1. Outdoor LED Display Technical Parameter
|
Model No. |
NS-OR-DD-P16 |
|
Pixel Pitch |
16mm |
|
Module Size |
256mm×256mm |
|
Module Resolution(dots) |
16*16 |
|
Panel Size |
1024mm×768mm |
|
Panel Resolution(dots) |
64×48 |
|
Pixel Configuration(RGB) |
1R1G1B |
|
Pixel Density(dots/m2) |
3906 |
|
Brightness(cd/m2) |
≥ 8000 |
|
Best Viewing Distance(m) |
15-300 |
|
Max. Power Consumption(W/m2) |
1000 |
|
Drive Mode |
Static |
|
Wavelength |
R 620-625 G 520-525 B 470-475 |
|
Viewing Angle |
110°(H)/45°(V) |
|
Operating Temperature |
–20~60°C |
|
Video Frame Rate(Hz) |
≥60HZ |
|
Display Refresh Rate(Hz) |
≥300HZ |
|
Grey Level(colors) |
16.7million |
|
Life Span |
≥100,000 hours |
|
Working Voltage |
220V±15% OR 110V±15% |
|
Video Signal Input |
RF,S-Video, RGB,RGBHV,YUV,YC,COMPOSITION |
|
Control System |
LINSN OR DB-STAR |
2. Outdoor LED Display Module
|
Module Size (W*H) |
256mm*256mm |
Pixel Configuration |
1R1G1B |
|
Pixel Pitch |
16mm |
Resolution (W*H) |
16 dots*16 dots |
|
Pixel Density |
3906 dots/㎡ |
LED Type |
3mm Oval Lamp |
3. Outdoor LED Display Cabinet
|
Cabinet Size (W*H) |
1024mm*768mm |
Module Qty |
12 pcs |
|
Cabinet Resolution (W*H) |
96 dots*64 dots |
Cabinet Pixel |
6144 |
|
Weight |
40 kg/ Cabinet |
Area |
0.6144㎡ |
|
Average Power Consumption |
350w/㎡ |
Max Consumption |
1000W/m2 |
4. Methods for Quality Assurance
a. Aging
b. Vibration Testing
5. Factory Equipment
