Certification:CE, RoHS, UL, FCC, ISO
Quick Detail:
1. CE&RoHS certificate
2. 24 months warranty and Lifelong free tech-support
3. Excellent contrast ratio, high resolution/high definition
4. Perfect uniformity and no mosaic
5. Waterproof IP65
6. Light weight and easy to install
IP65 P16 1R1G1B Billboard LED Display Full Color For Cross Road
Description:
1. Durable fresh color and High brightness
65536 grey scale and the 281 billions color and more than 1200 HZ refresh rate ensure wonderful video
color presentation
2. Energy Saving
Adopt high-brightness LED with low consumption and 90% efficiendy power supply saving 20% power
energy.
3. Stability and reliability
Precise manufacturing process keeps the modules rugged and durable.
Applications:

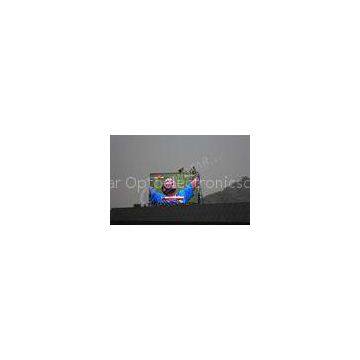

Outdoor full color digital billboards are very popular in LED display advertising field. This type digital
billboards are widely used Outdoor plaza, Outdoor building, stadium, shopping mall, cross road
,highway,airport etc;
Specifications:
1. Outdoor LED Display Technical Parameter
|
Model No. |
NS-OR-DD-P16 |
|
Pixel Pitch |
16mm |
|
Module Size |
256mm×256mm |
|
Module Resolution(dots) |
16*16 |
|
Panel Size |
1024mm×768mm |
|
Panel Resolution(dots) |
64×48 |
|
Pixel Configuration(RGB) |
1R1G1B |
|
Pixel Density(dots/m2) |
3906 |
|
Brightness(cd/m2) |
≥ 8000 |
|
Best Viewing Distance(m) |
15-300 |
|
Max. Power Consumption(W/m2) |
1000 |
|
Drive Mode |
Static |
|
Wavelength |
R 620-625 G 520-525 B 470-475 |
|
Viewing Angle |
110°(H)/45°(V) |
|
Operating Temperature |
–20~60°C |
|
Video Frame Rate(Hz) |
≥60HZ |
|
Display Refresh Rate(Hz) |
≥300HZ |
|
Grey Level(colors) |
16.7million |
|
Lifespan |
≥100,000 hours |
|
Working Voltage |
220V±15% OR 110V±15% |
|
Video Signal Input |
RF,S-Video, RGB,RGBHV,YUV,YC,COMPOSITION |
|
Control System |
LINSN OR DB-STAR |
2. Outdoor LED Display Module
|
Module Size (W*H) |
256mm*256mm |
Pixel Configuration |
1R1G1B |
|
Pixel Pitch |
16mm |
Resolution (W*H) |
16 dots*16 dots |
|
Pixel Density |
3906 dots/㎡ |
LED Type |
3mm Oval Lamp |
3. Outdoor LED Display Cabinet
|
Cabinet Size (W*H) |
1024mm*768mm |
Module Qty |
12 pcs |
|
|
