Certification:CE, RoHS, UL, FCC, ISO
Quick Detail:
1. P8 outdoor front access screen
2. Suitable for small size advertising LED display;
3. Customize screen size according to project, size is flexible.
4. Can be mounted on the wall, maintain from front
5. Waterproof Level:IP65
6. Long using life, can reach more than 100,000 hours

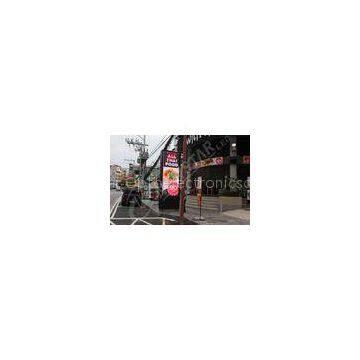

P8 SMD3535 Outdoor Advertising LED Display , Front Maintenance
Description:
1. Combining several global leading display board control technologies, such as grey level code
technology, brightness control technology, and non linearly rectifying technology
2. Modularization, high resolution and high contrast design, vivid dynamic display
3. Arbitrarily exchanging the display or displaying synchronized video
4. Long using life, can reach more than 100,000 hours, while the power consumption is lower than one
tenth of lamp or neon
5. Economical maintenance and cost saving
Applications:
Commercial advertising, mobile media, night club, entertainment events, business establishments, such as
banks, stock exchange centers, bus station, schools, telecommunications, customs, stadiums, studio,
shopping malls, railways, airports, harbors, etc;
Specifications:
1. Outdoor LED Display Technical Parameter
|
Model No. |
NS-OR-SD-P8 |
|
Pixel Pitch |
8mm |
|
Module Size |
256mm×128 mm |
|
Module Resolution(Pixel) |
32dots×16dots |
|
Pixel Density |
15625dots/m2 |
|
LED Type |
SMD 3 in 1 |
|
Pixel Configuration |
1R1G1B |
|
Wavelength (R.G.B) |
R:625±2nm G:525±2nm B:470±2nm |
|
Drive Mode |
Dynamic 1/8 Duty Constant Current |
|
Cabinet Size |
1024×768×135mm |
|
Cabinet Resolution |
128dots×96dots |
|
Brightness |
≥6000 cd/m2 |
|
Contrast |
≥ 2000:1 |
|
Viewing Angle |
140°(Horizontal )/140°(Vertical ) |
|
Best Viewing Distance |
6m |
|
Grey Scale |
10bits/1024levels |
|
Color Capability |
16777216 |
|
Color Temperature |
5000-9300K |
|
Maximum Power Consumption |
780W/m2 |
|
Average Power Consumption |
260W/m2 |
|
Working Voltage |
AC 220V/110V s±15% 50-60 HZ |
|
Frame Frequency |
60-85 HZ |
|
Refresh Frequency |
240 - 1000HZ |
|
Brightness Correction |
Pixel, Module, Cabinet Correction |
|
Operating Temperature |
Static:-40°C ~+85°C Working:-20~+65°C |
|
Operating Humidity |
10-90% RH |
|
LED Lifespan |
100,000 hours |
|
MTBF |
≥50,000 hours |
|
Computer Operation System |
Win 98/ Win XP/ Win 2000 |
|
Video Sign |
