Certification:CE, RoHS, UL, FCC, ISO
Quick Detail:
1. Super uniformity and no mosaic
2. Brilliant contrast ratio, high resolution/high definition
3. Available product item: P3.91, P4.46, P5.2, P6.25.
4. Super light and can be installed by one person
5. Lifespan≥100000Hours
6. Brightness(cdm2)>2000nit
HD P4.46 3 In 1 Indoor Rental LED Display Advertising For Mobile Media
Description:
1. Slim Design
One cabinet size is 500 x 500 x 100mm
2. Fast Assembly
No tools needed, one person can install at least 70 cabinets per hour. One person can finish the whole process alone.
3. Light Weight
One Cabinet only weights 8.5KG, 34KG for one square meter.
4. Aluminum Materials
8 kg/panel, good appearance, anti-corrosiveness
Applications:

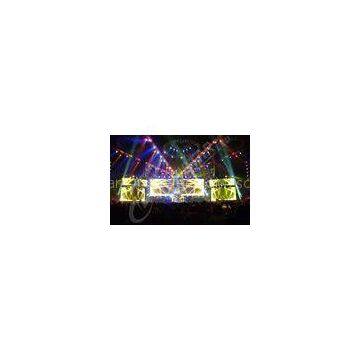

Commercial advertising, mobile media, night club, entertainment events, business establishments, such as
banks, stock exchange centers, bus station, schools, telecommunications, customs, stadiums, studio,
shopping malls, railways, airports, harbors, etc;
Specifications:
1. Indoor LED Display Technical Parameter
|
Model No. |
LS4 |
|
Pixel Pitch |
4.46mm |
|
Module Size |
250*250mm |
|
Module Resolution(pixels) |
56*56 |
|
Panel Size |
500mm×500mm |
|
Panel Resolution(pixels) |
112×112 |
|
Pixel Configuration(RGB) |
1R1G1B |
|
Pixel Density(pixels/m2) |
50176 |
|
Brightness(cdm2) |
2000 |
|
Best Viewing Distance(m) |
6-100 |
|
Max.Power Consumption(W/m2) |
1350 |
|
Waterproof Level |
IP21 |
|
Wavelength |
R 620-625 G 520-525 B 470-475 |
|
LED SPEC |
2020 |
|
Viewing Angle |
140°(H)/60°(V) |
|
Operating Temperature |
–20~50°C |
|
Video Frame Rate(Hz) |
≥60HZ |
|
Display Refresh Rate(Hz) |
≥300HZ |
|
Grey Level(colors) |
16.7million |
|
MTBF |
≥50000 hours |
|
Lifespan |
≥100000Hours |
|
Working Voltage |
220V±15% OR 110V±15% |
|
Drive Mode |
Constant 1/10 |
|
Graphics Card |
DVI Graphics card |
|
Video Signal |
RF, S-Video, RGB, RGBHV, YUV, YC, etc. |
|
Control System |
LINSN |
|
Software |
LED studio 10.0 |
|
Installation |
Wall mount, hung and stand structure |
2. Indoor LED Display Module
|
Dimensions (w x h) |
250mmx250mm |
Resolution (w x h) |
64 x 64 |
|
Pixel pitch |
4.46mm |
