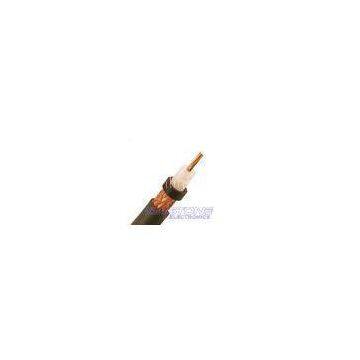

MIL-C-17 RG 213 Coaxial Cable Stranded BC Conductor with BC Braiding for Military
Quick Detail:
RG 213 Signal Coaxial Cable MIL-C-17 Coaxial Cable 7×0.752mm Stranded Bare Copper 7.24mm Solid PE Bare Copper Braiding PVC Jacket 100M, 200M, 500M, Wooden Spool, Carton MOQ: 5 KMDescription:
KT0408 RG 213 MIL-C-17 Coaxial Cable,7.24mm Solid PE,7 × 0.752mm Bare Copper
| KT0408 RG 213 MIL-C-17 Coaxial Cable,7.24mm Solid PE,7×0.752mm Bare Copper | ||
| Construction Parameters: | ||
| Inner Conductor | 7×0.752mm | Bare Copper |
| Dielectric | 7.24mm | Solid PE |
| Shield | Nom. 7.85mm | Bare Copper |
| Jacket | 10.30mm | PVC (Color by your choise) |
| Electrical Characteristics: | ||
| Capacitance | 101.05 pF/m | |
| Impedance | 50 Ω | |
| Velocity of Propagation | 0.66 | |
| Max Operating Voltage(KVMS) | 3.7 | |
| Operating Temp Range (PVC) | -25 ℃ to 70℃ | |
| RoHS | YES | |
| Attenuation(20℃): | ||
| Frequency (MHZ) | Max Attenuation (dB/100m) | |
| 100 | 6.60 | |
| 400 | 14.10 | |
| 1000 | 24.00 | |
| Order Informations: | ||
| Marking | KINGTONE RG 213 COAXIAL CABLE XXX M | |
| Inner Package | 100m/Roll, 100m/Spool,305m/Spool (or Per customer\'s request) | |
| Outer Package | Carton, Color Box, Pallet (or Per customer\'s request) | |
| Delivery time | Normally 15 days after received the deposit. | |
| More informations | please contact with us. |
Competitive Advantage:
1, From raw materials to final products, we perform intense quality checks to maintain our product quality:
A, Incoming material inspected by QC.
B, Manufacturing Process Control
C: Workers trained daily/weekly/monthly
D: Work instructions manual at each work station
E: 5S system implemented
F: Machine maintenance procedure
G: Quality Control and Final Inspection
The QC staff will check the material, process product
and final product according to the specification or test procedure.
2, Our R&D efforts center on reinforcing and developing element technologies
needed to support the future growth and success for customers and KINGTONE.
3, We know customers have urgent needs.
We are skilled at effective communication to interact with customers.
In order to provide prompt service, we can answer for you 7*24 hours.
4, We can Quickly and professionally answer for the inquire
5, More than 1000 kinds of cable, connectors and assembles can be produce and organized from us
6, Intime delivery
