Certification:PSE UL CE GS EK FCC CB BS

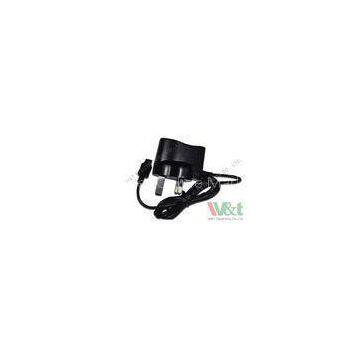

110V 220V 4W - 6W AC DC Power Adapter Bluetooth Speaker Adapters With LED Indicator
Quick Detail:
4-6W W&T AC/DC power adapter series Input voltage: 100V-240V AC, 50/60HzRange voltage: 86V-265V AC, 47-63Hz
Output power: 1~4W
Output voltage: DC 3.0V ~ 24.0V
Output current range: 100MA~800MA
Efficency: 65% Min M.T.B.F: >50000H Plug in: UK ,US, EU, AUS, JP and KC plug
Competitive Advantage:
High efficiency power(Level VI)
Meets \"ENERGY STAR\" program requirement
Over voltage protection
Over load & short circuit protection
100% full load burn-in test
Application:
It’s suitable for an extremely wide range of applications, including:
• Suitable for shaver and Multi-function skin care device
• Mobile Devices, mobile phone, Smart phone.
• Tablet PC, Android MID , Android STB (5V 2.1A)
• MP3,MP4,MP5,,GPS ( 5V 1A, 9V 1A, 12V 1A)
• Digital camera
• Li-lon /Ni-mh / Ni-hydrogen / Lead-acid battery
• Electric toy and portable medical products charge
• Electric tools and consumer electronics products charge
• Electric cars and communication terminal equipment product charge
• Consumption electronic products
• Tester machine and industrial machine
• Toy and lighting products
• Digital product and radio device
• Medical and exercise device or equipment
Specification:
|
INPUT |
Voltage |
90-264VAC universal full range |
|||||||
|
Frequency |
47-63Hz |
||||||||
|
Current |
＜0.3A@100V AC input, full load condition |
||||||||
|
Inrush Current |
＜40A@115V , ＜60A@230V AC input.Cold start at 25℃ ambient |
||||||||
|
Leakage Current |
＜0.3A@ 264V AC input |
||||||||
|
OUTPUT |
PART NO. |
AD06WC36 |
AD06WC05 |
AD06WC84 |
AD06WC09 |
AD06WC12 |
AD06WC15 |
AD06WC17 |
AD06WC24 |
|
Voltage |
0-3.6V |
0-5V |
0-8.4V |
9V |
12.6V |
15V |
16.8V |
24V |
|
|
Max Load |
0-1.2A |
0-1.2A |
0-0.7A |
0-0.65A |
0-0.5A |
0-0.4A |
0-0.35A |
0-0.25A |
|
|
Output Tolerance |
±5% |
±5% |
±5% |
±5% |
±5% |
±5% |
±5% |
±5% |
|
|
Ripple Noise(MAX) |
50mV |
50mV |
70mV |
90mV |
120mV |
150mV |
180mV |
240mV |
|
|
Efficiency(MIN) |
≥65% |
≥65% |
≥65% |
≥65% |
≥75% |
≥75% |
≥75% |
≥75% |
|
|
Output MAX |
6W |
6W |
6W |
6W |
6W |
6W |
6W |
6W |
|
|
PROTECTION |
Over Voltage |
over 120%～150 max |
|||||||
|
Shutdown and latc |
