Accurate Disposable Paper Tea Cup Making Machine High Speed 60 - 70 Pc / min

Delivery Time:In 30 working days
Certification:SGS, CE

High Speed 60 - 70 PC Tea Cup Making Machine For Manufacturing Paper Cups

Quick details:

Paper Cup Size	3-12 oz (mold exchangeable)
Productivity	60-70 Pc/min
Control System	PLC Control & Sever-motor Control
Transmission system	Gear-Motor
Drive Way	Gear Drive
Lubrications system	Self-Lubrication system
after-sales service	Free training, Engineers available to service machinery overseas

Description:

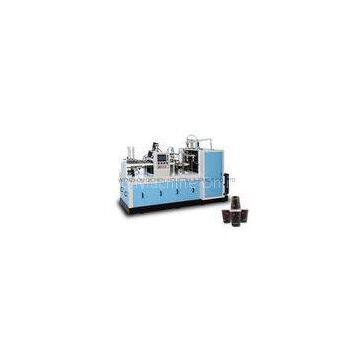

ZBJ-X12 tea cup making machine, which can produce many kinds of paper cup with a series of continuous process, including three times paper feeding, paper anti-withdrawal device (to ensure accurate positioning), ultrasonic welding, transferring paper fan by magic hand, silicone oil lubricating, bottom punching, bottom folding, bottom pre-heating, bottom knurling, cup discharging. The machine, researched and developed by our company, is improved in stability after comprehensive technical improvements.

Specifications:

Model	ZBJ-X12 Tea Cup Making Machine
Paper Cup Size	3oz-12oz (mold exchangeable)
Raw Material	One-side PE (polyethylene) film coated / laminated paper Ultrasonic machine can be produce both single and double PE paper
Suitable paper weight	140-350gsm
Productivity	60-70 pcs/ minute
Power Source	220V/380V 50Hz or other required
Transmission system	Gear-Motor
Control system	PLC Control
Bottom Control	Sever-motor control
Drive way	Gear Drive
Lubrications system	Self-Lubrication system
Paper Cup Transfer	Robot Arm
Total Power	6KW
Total Weight	2500KG
Package Size(L x W x H)	2600 x1200 x1580mm
Working Air Source	0.4-0.5Mpa
Making Double PE coated paper cups, need to buy an air compressor

Competitive Advantage:

1. We use two gear boxes, 125 type and 100 type
2. We use Gear-motor instead of speed reducer and motor
3. We use PLC control and serve-motor control
4. We use 3 Cam to control the folding process.
5. We use thre times paper feeding process.
6. We use self-lubrication for ZBJ-X12 Paper cup forming machine

Applications:

Produce for Coffee Cup, Tea Cup, Juice Cup, Ice Cream Cup etc

Process of Paper Cup Making:

Printing Step:

The PE coated paper should be printed with different design and different color. So when we make the paper cups, there will be beautiful design with logo on the cups.

Cutting Step:

In this step, you can cut the paper into different sizes paper fan.

For paper roll for bottom, need to use slitting machine to cut big roll into small roll.

Forming Step:

You should put the paper fan on the machine, so the paper fan can be folded by the paper cup machine. Then the paper cups are formed, we can use the cups and enjoy delicious drinks.

Packing:

FCL: paper cup machine with wood tray and plastic film.

LCL: paper cup machine with wood box and plastic film.

We will spraying oil in paper cup machine for keeping rust away
