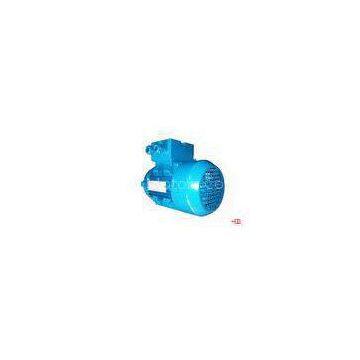

6 Pole 1000 Rpm 0.18KW 0.24HP Low Voltage Electric Motor With Aluminum Frame

Ambient

Temperature range:

-20~40℃

Ambient humidity:

90% less than relative humidity

Altitude:

less than 1000m above sea level

Ambient condition:

no causticity gas, no dust, no heavy mental pollution, no flame, no salt crystallization

Supply power:

Voltage variable

±5%

frequency variable

±2%  Combine voltage and frequency variable : ±5%

Standard Feature:

Standard

IEC /DIN

Efficiency Level

IE1

Phase

Three-phase

Frame Size

H63~132 Aluminum Frame

Protect Feature

Totally Enclosed

Output Range

0.12~7.5KW

Voltage

380V

Frequency

50HZ

Poles

2,4,6,8

Protection Class

IP54/IP55

Insulation

F/B

Mounting

IMB5 /IM3001

Cooling

IC411

Duty

S1

Connection

” Y\" type for 3kW and downwards, \"D\" type for 4kW and upwards

Thermometry

Optional

Overload Times

According to IEC60034, the motors can withstand 1.5times rated voltage and rated current for 2 minutes.

Certification

CCC, CE,ISO9001

Special motors can be designed according to customers\' requirements

Motor Type

2 pole /3000 rpm

4 pole /1500 rpm

6pole /1000 rpm

8pole /750 rpm

kW

HP

kW

HP

kW

HP

kW

HP

Y2A-63

0.18

0.24

0.12

0.16

Y2A-63

0.25

0.33

0.18

0.24

Y2A-71

0.37

0.5

0.25

0.33

0.18

0.24

Y2A-71

0.55

0.75

0.37

0.5

0.25

0.33

Y2A-80

0.75

1

0.55

0.75

0.37

0.5

0.18

0.24

Y2A-80

1.1

1.5

0.75
