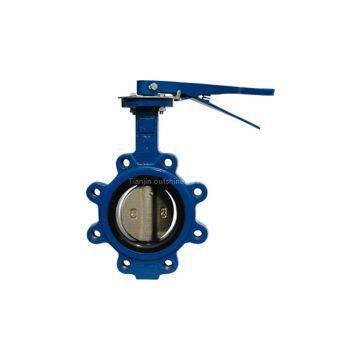

Lug Butterfly Valve(pin)

1.Small in size and light in weight,easy to install. It can be mounted wherever needed,suitable for various actuators.
2.Lug type butterfly valve can be used on the end of the pipeline.3.Lug type butterfly valve has threaded metal inserts(usually stainlesss steel)installed in the valve's bolt holes.
4.The inserts are threaded on both ends,which allows this lug style valve to be installed into a system using two sets of bolts and no nuts for each hole.
5.The valve is installed between two flanges using a separate set of bolts for each side of the flange.
6.This setup permits either sside of the piping system to be disconnected without disturbing the other side.
7.
When used in the end of pileline service,it has a reduced pressure rating.E.g,it rates 150 PSI when mounted between two flanges,while it rates just 75 PSI when mounted in the end of pipeline service.

Size:DN40-DN1200(1.5"-48")
standard:
1.Design standard:BS5155,API609,EN593
2.Test standard:DIN3230 Part3,API598,EN12266-1
3.Face to face standard:DIN3202K1,API609,EN558-1,ISO5752
4.Medium:water,sewage,oil,food,gas and so on.
5.Flange connection:DIN2501 PN10/16,BS4504 PN10/16,ASME B16.1 125LB & 150LB,JISB2220 10K and so on.
6.Working pressure:10 bar/16 bar.
7.Test pressure:
Shell:15bar/24bar
Seal:11bar/17.6bar

                                     Specification
Name           Material                 ASTM
Body      Cast Iron               ASTM A126B
              Ductile Iron            ASTM A536
              Carbon Steel            A216 WCB
              Stainless Steel         A351 CF8M
                                               A351 CF8


Disc       Plated Ductile Iron     ASTM A536
              Aluminum Bronze         B148-954
              Stainless Steel         A351 CF8M
                                               A351 CF8
              Carbon Steel            A216 WCB

Stem          Carbon Steel            A216 WCB
              Stainless Steel         A276-410
                                              A276-304
                                              A276-316
                                              A276-316L
Seat       NBR(NITRILE)
              EPDM
              NEOPRENE(NR)
              VITON(FKM)
              NATURAl RUBBER(NR)
              PTFE

Pin           Stainless Steel         A182 F6A
                                                 A182 F304
                                                 A182 F316
Bushing       PTFE
                    Bronze                  B62

O-Ring        NBR
                   EPDM
                   VITON
