IEC61000 Electrostatic Discharge Simulator
Negotiable
/ Piece
1 Piece(Min. Order)
- T/T L/C D/P D/A
- 7 days
You May Like
Product Description

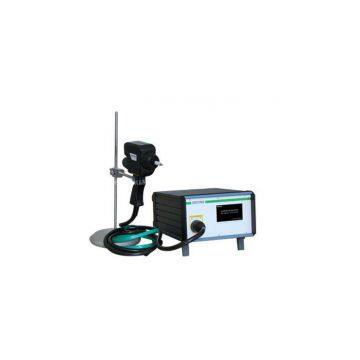

IEC61000 Electrostatic Discharge Simulator
ESD simulator (Electrostatic Discharge Generator or Electrostatic Gun) is in full compliance with IEC 61000-4-2, EN61000-4-2, ISO10605, GB/T17626.2, GB/T17215.301 and GB/T17215.322. The ESD generator is designed for the assessment of electrical and electronic equipment to withstand ESD performance. ESD-5020BX/ESD-4020AX has LCD display in both English and Chinese, they equipped with an infrared remote control which can allow you do the test in some special place.
Specifications:
| Product Model | ESD-4020BX | ESD-4020AX |
| Output Voltage | 0.5~20kV±5% | 0.54~30kV±5% |
| Polarity | Positive/Negative | Positive/Negative |
| Energy Storage Capacitance | 150pF±10% (Replaceable) | 150pF±10% (Replaceable) |
| Discharge Resistor | 330Ω±5% (Replaceable) | 330Ω±5% (Replaceable) |
| Current Rise Time | 0.6~1ns | 0.6~1ns |
| Testing Functions | Single, Count, 20pps, Air, Contact, IEC level | Single, Count, 20pps, Air, Contact, IEC level |
| Trigger Mode | MANUAL/AUTO | MANUAL/AUTO |
| Numbers of Discharge | 1~9999 | 1~9999 |
| Repetition | 0.05s~99.99s | 0.05s~99.99s |
| Working Power | AC220V(Option 110V)±10%, 50/60Hz | AC220V(Option 110V)±10%, 50/60Hz |
