SEWING MACHINE

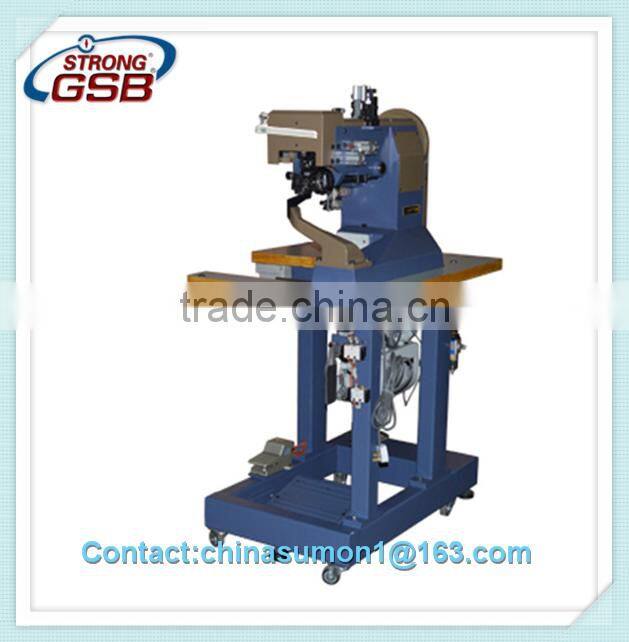

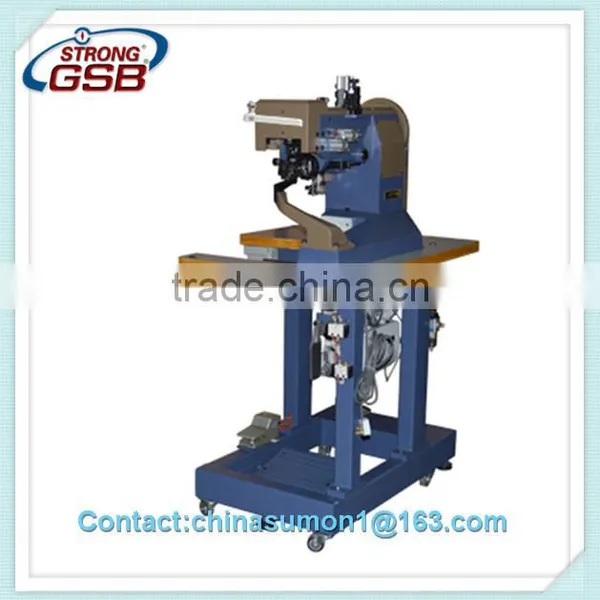

GR-747 shoe stitch machine
1,Model:GR-747
2,English Name:shoe stitch machine
3,Application:for sew moccasins thread on the upper
Technical parameter: | |
Sewing speed | Stepless speed regulating |
Stitch length | 4-8mm |
Sewing thickness | 4mm |
Sewing thread | Woven wire(1-1.2) |
Sewing needle | DY-100(200-300#) |
Motor | 750W/ 220V one-phase 50-60hz 750W/ 380V three-phase 50-60hz |
Net weight | 210Kg |
Domestic packing gross weight | 250Kg |
Domestic packing parameter | 103*86*152(L*W*H) cm |
Exportation packing gross weight | 290 Kg |
Exportation packing parameter | 103*88*159(L*W*H) cm |
Characteristics: | |
1.After years of research and improvement, the machine of the hardware and software are already mature stable and convenient to maintain. | |
2.All parts were manufactured by HAAS CNC machines, high precision machining parts. | |

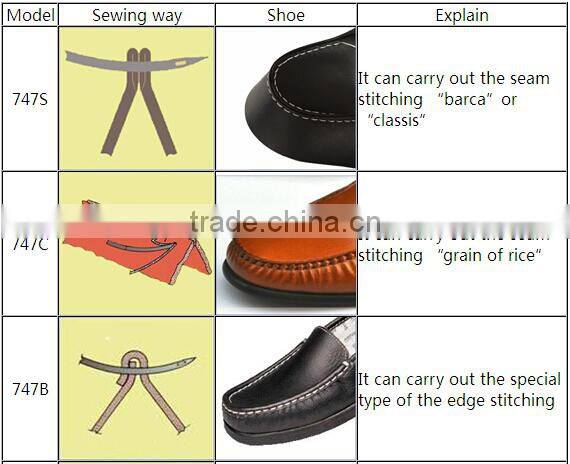

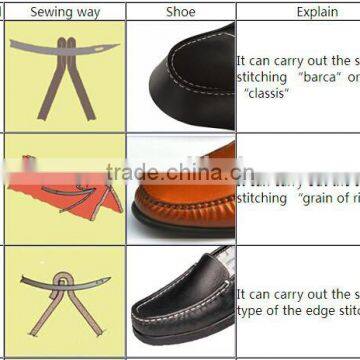

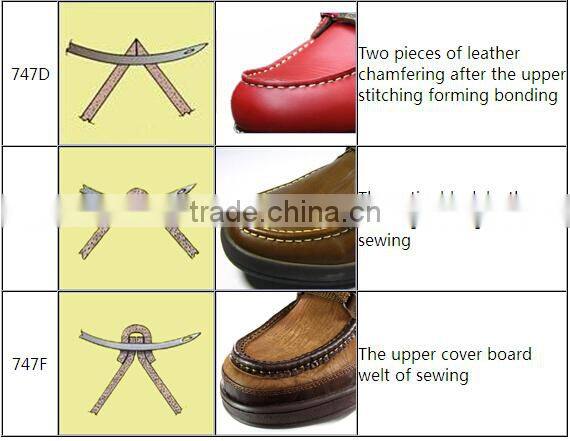

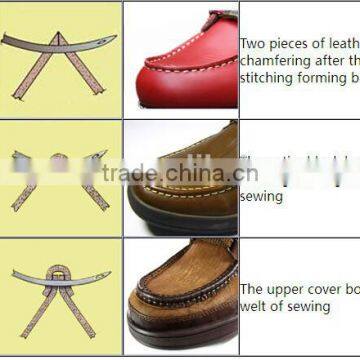

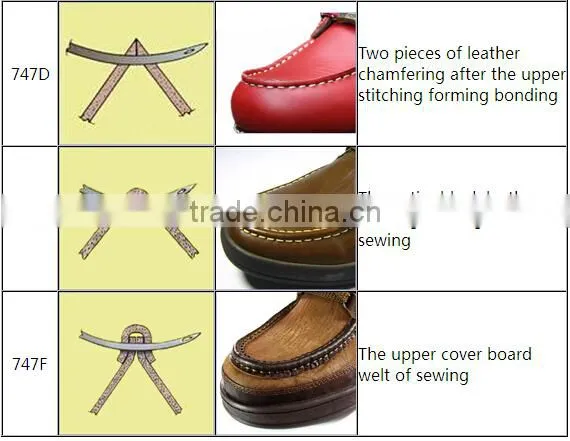

3.Through changing the ox horn or parts can sewing S/B/C and other six different help surface suture way. | |
4.Presser foot and advanced needle agencies by pneumatic system to control realization. | |
5.Adopt servo motor, speed can be flexible, stop the needle position by computer control. | |
