SEWING MACHINE

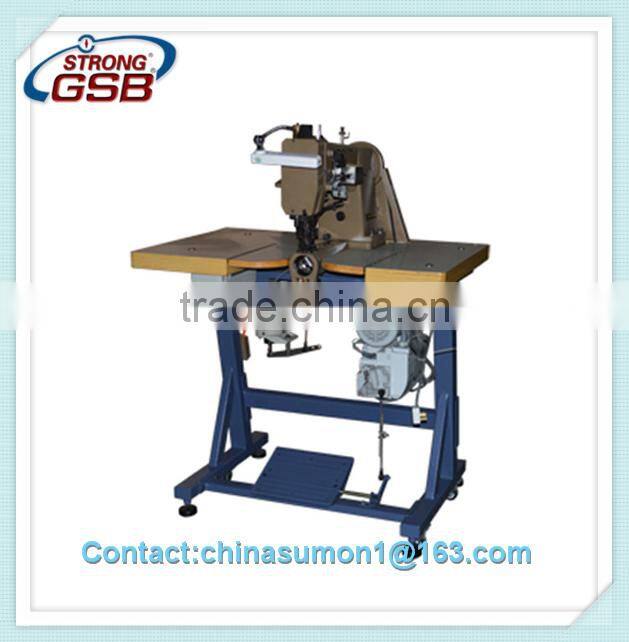

GR-81 special industrial sewing machine
1,Model:GR-81
2,English Name:special industrial sewing machine
3,Application:for sew moccasins thread on the upper of leather shoe, leisure shoe and bags
Technical parameter: | |
Sewing speed | Stepless speed regulating |
Stitch length | 0-10mm |
Sewing thread | Synthetic thread(0.6-1) |
Needle spacing | 7.5mm/5.5mm/4.5mm |
Sewing needle | DDX1(160#/180#/200#) |
Motor | 750W/ 220V one-phase /50-60Hz 750W/ 380V three-phase /50-60Hz |
Net weight | 135Kg |
Domestic packing gross weight | 265Kg |
Domestic packing parameter | 107*77*137(L*W*H) cm |
Exportation packing gross weight | 210 Kg |
Exportation packing parameter | 111*81*140(L*W*H) cm |
Characteristics: | |
1. Suitable for leather shoes, leisure shoes and leather help surface suture processing. | |
2. All parts were manufactured by HAAS CNC machines, high precision machining parts. | |

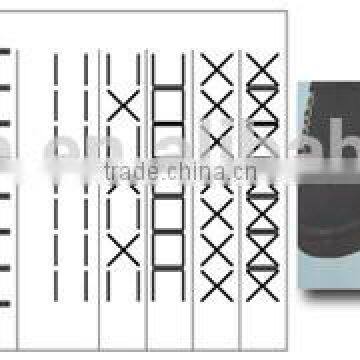

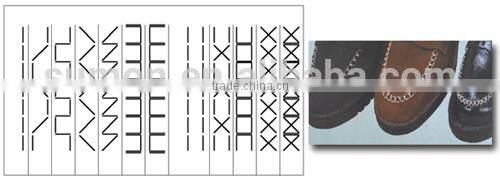

3. Replace the CAM can sewing 12 kinds of line mark. | |
4. Using electronic speed motor speed can be flexible, stop the needle position by computer control. | |
PRODUCT SCENE:
