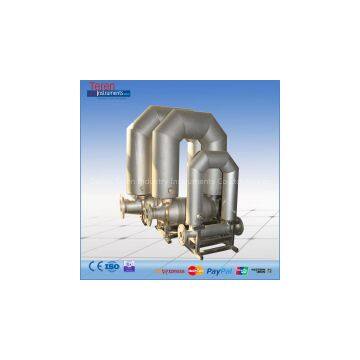

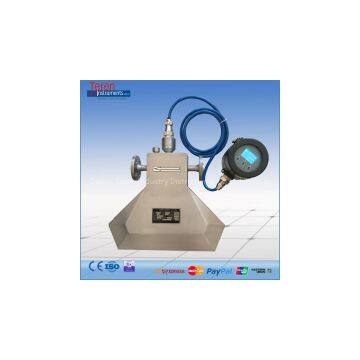

Coriolis Mass Flow meter with Integral Type
Product Description
GENERAL
CMF Coriolis mass flowmeters are the leading precision flow and density measurement solution offering the most accurate and repeatable mass measurement for liquids, or slurries. CMF meters offer the most accurate measurement available for virtually any process fluid, while exhibiting exceptionally low pressure drop.
FEATURES
Unchallengeable CMF performance on liquid mass flow, volume flow, and density measurement
Unique design delivers unparalleled measurement sensitivity and stability
Guarantees consistent, reliable performance over the widest flow range
Designed to minimize process, mounting, and environmental effect
mass flow meters.jpg
LIQUID FLOW RATES
Model
Nominal Size (mm)
Flow rate (t/hr)
CMF-006
6
0~0.56~0.7
CMF-008
8
0~0.96~1.2
CMF-010
10
0~1.8~2.1
CMF-015
15
0~3.6~4.5
CMF-020
20
0~6~7.2
CMF-025
25
0~9.6~12
CMF-032
32
0~18~21
CMF-040
40
0~30~36
CMF-050
50
0~48~60
CMF-080
80
0~150~180
CMF-100
100
0~240~280
CMF-150
150
0~480~600
SENSOR SPECIFICATIONS
Accuracy: ±0.1~0.5%
Repeatability: ±0.1~0.25%
Density measurement range: 0.5~2g/cm3, Accuracy: ±0.002 g/cm3
Operating temperature: -50~+200℃
Ambient temperature: -40~+60℃ or -20~+55℃
The measuring tube material: SS316L; The housing material: SS304
Nominal pressure: 4.0MPa
Ex-proof: Exd (ia)ⅡC T6Gb
TRANSMITTER SPECIFICATIONS
Item
FT-521 LED
FT-522 LCD
FT-523 digital LCD
Principle
Analog signal processing
Analog signal processing
Digital signal processing
1.MVD technology
2.Higher sampling
3.Digital filtering
Ambient temperature
-40~60℃
-20~60℃
-20~60℃
Display info
Mass flow; Volume flow,
Density
Mass flow; Volume flow,
Density, Temperature
Mass flow; Volume flow,
Density, Temperature
Display mode
LED
LCD
LCD
Power supply
24VDC/220VAC
24VDC/220VAC
24VDC
Output signal
Pulse/4-20mA
Pulse/4-20mA
Pulse/4-20mA
Communication
Modbus
Modbus / Hart
Modbus
Ex-proof
Exd (ia) ⅡC T6Gb
Exd (ia) ⅡC T6Gb
Ex d ib IIC T6 Gb
Application fields
Low Flow Precision Measurement
Precision Measurement
& Process Control
High Capacity Precision
Measurement
Starting at 2kg/hr to330kg/hr
Flavoring
Vials
Chemical injection
Kg/min – tons/hr
Truck loading
Internal allocation
Leak detection
Produced fluids with chlorides
Up to 1,200 tons/hr
Custody transfer
Ship loading
Railcar loading
Pipeline measurement
Marine bunkering
Feedstock and fuel blending
1 750.jpg
Packaging & Shipping
We have established nice relationship with so many expresses,such as DHL,Fedex,TNT , Air Shipping , Ocean Shipping etc.
Company Information
Teren instruments Established in 2007, located in the beautiful coastal city - Dalian,China. We main focus on running of instruments, main cover ultrasonic flowmeter, ultrasonic level meter, ultrasonic water meter, electromagnetic flowmeter, radar Level meter etc.
