Pole mounted Fiber Optic Joint Closure 5 ports 120 Cores for FTTH

Delivery Time:7-15days
Certification:ISO

Pole mounted Fiber Optic Joint Closure 5 ports 120 Cores for FTTH

Quick Detail:

IP68 Heat shrink type waterproof fiber optical splice closure.1 oval port+4 round ports;Max 5 trays and 120 cores;Suit for 8-25mm cables;Used for aerial wall mounted,pole mounted,man hole,duct mounting and pipeline,direct buried..etc

Description:

1. Protection grade:IP68

2. Material:PP,ABS(new first hand raw material)

3. Number of cable ports: 1 big oval port and 4 small round ports

4. Maximum Trays: 5 trays

5. Maximum Cores:120(singlel core)

6. Dimension (HxD):430mm *130 mm

7. Package material:Export Carton

8. Weight:2.5-3.0Kg

9. Cable diameter range:8mm-25mm

10. Sealing way of cables:Heat shrinking

11. Quality warrenty:2 years

12. Life span:more than 25 years

Applications:

Wall mounted,pole mounted,manhole,duct mounting,pipeline,direct buried..etc

Specifications:

Model	No.of ports	Cable range	Max trays	Max Capacity	Dimensions
GJS20-DR03A	5(1 oval+4 round)	8-25mm	5	120 cores	430×ф130mm

Competitive Advantage:

Easy & fast installation with no special tools,suit for uncut cables Superior sealing performance(free sample for testing) The closure can be repeatly used many times. The cables can be fixed via 3 points,safe and reliable Enough space for surplus fibers inside the closure Flexible branching for fibers loose leaf type of splice tray fixing,easy operation&maintain Modular fiber management system

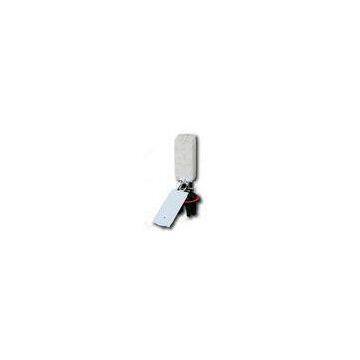

Pictures:
