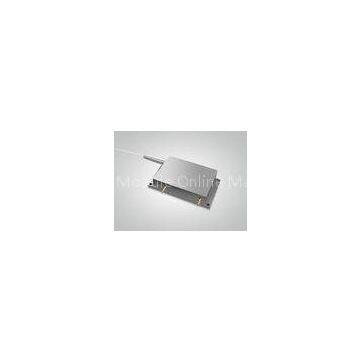

915nm / 940nm 50W/55W Pump Diode Lasers High Power , OEM Laser Module

Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)

Key Specifications

Brand Name:

BWT

Place of Origin:

China

Model Number:

K9XXFA5RN-50.00W

Diode Laser Module Online Market

Payment & Shipping

Payment Methods:

Port of Shipment:

China

Delivery Detail:

7 days

Brand Name BWT

Place of Origin China

Model Number K9XXFA5RN-50.00W

Delivery Time:4-8weeks
Certification:ISO9001

OEM Service Offer Pump Diode Lasers 915nm / 940nm 50W/55W

Features:

940nm, 976nm wavelength 50W/55W output power 105µm fiber core diameter 0.15/0.22N.A. 1030nm-1200nm feedback protection

Applications:

Medical use Fiber laser pumping Material processing

Specifications(25℃)	Symbol	Unit	Value
Optical Data	CW-Output Power	Po	W	45	50	55	60	65
Center Wavelength	lc	nm	915,940,976
Tolerance of l	-	nm	±10
Spectral Width (FWHM)	△l	nm	<5
Temperature Drift of l	-	nm/℃	~0.3
Fiber Data(1)	Fiber Core Diameter	Wc	µm	105
Numerical Aperture	N.A.	-	0.15	0.15/0.22	0.15/0.22	0.22	0.22
Fiber Connector	-	-	-
Electrical Data	Operating Current	Iop	A	11
Threshold Current	Ith	A	0.8
Conversion Efficiency	η	%	>40
Slope Efficiency	ηD	W/A	4.3	4.9	4.9	5.9	5.9
Operating Voltage	Vop	V	10	12
Reverse Voltage	Vre	V	17.5
Feedback Isolation	Wavelength Range	l	nm	1030-1200
Isolation	-	dB	>30
Others	Operating Temperature	Top	℃	25±15
Storage Temperature	Tst	℃	-20~+70
Expected Lifetime	MTTF	h	>100,000
Dimensions (fiber and connector not included)	-	mm	74.0 x 50.0 x 15.0
Lead Soldering Temperature	Tis	℃	260(10 sec.)
