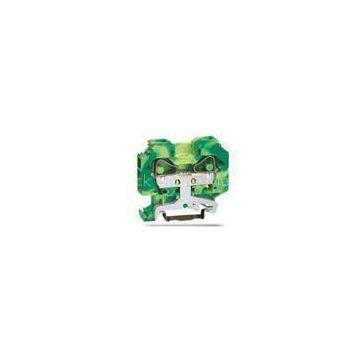

0.2 - 16.0mm2 / 24 - 6AWG 800V 76A Ground Spring Terminal Block SP216
Quick details
2-Conductor Ground Terminal Block
Wire Range 0.2-16.0mm2/24-6AWG
800V 76A 600V 65A 600V 70A.
Strip length 16-17 mm/0.65 in.
Order No.:216907(Green-Yellow)
◆ Use SUPU spring clipping technology, have the advantages of reliability, shock resistance, and maintenance-free, etc.
◆ Operate easily, only need a screw driver.
◆ Print marker card as customer\'s requests.
◆ Mounted on SP35 standard rail (steel or aluminum)
Specifications:
|
Article: |
2-Conductor Ground Terminal Block |
|||
|
Wire Range: |
0.2-16.0mm2/24-6AWG |
|||
|
IEC |
UL |
CSA |
EN |
|
|
Rated Voltage: |
800V |
600V |
600V |
800V |
|
Rated Current: |
76A |
65A |
70A |
76A |
|
Size (mm/in): |
12×58×45.5mm/0.472×2.28×1.79in |
|||
|
Strip length (mm/in): |
16-17 mm/0.65 in |
|||
|
Wires: |
Applied for any kind of wires |
|||
|
Connect Ways: |
Spring-clipping |
|||
|
Entry Type: |
Side-entry |
|||
|
Peak Voltage: |
8KV |
|||
|
Weight: |
||||
|
Pollution Severity: |
3 |
|||
|
UL94 Insulation Material: |
V 0 or V 2 |
|||
|
Insulation Material: |
PA66 |
|||
|
Color: |
Green-Yellow |
|||
|
Packing: |
50 PCS |
Attachment:
|
Name |
Order No. |
|
End-and Intermediate |
216121(Gray)/216122(Orange) |
|
Adjacent Jumper |
216301 |
|
Protective Warning Marker |
216701 |
