Home > Products > Spring Terminal Block > 600V 10A 1 * 2 Conductor Through Spring Terminal Block , Front - Entry Type

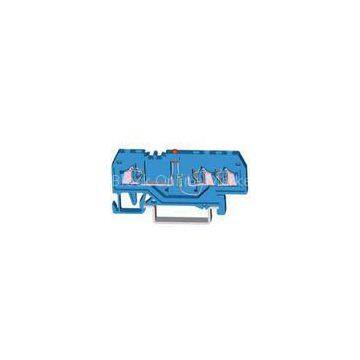

600V 10A 1 * 2 Conductor Through Spring Terminal Block , Front - Entry Type
- 0 Meter / Meters per Month
- T/T L/C D/P D/A
- 7 days
You May Like
-
2 - 24 Pole 0.2-1.5mm2 / 24 - 16 AWG Coupled MCS Connector SP435 / SP438
-
2 - 24 Pole 24 - 16AWG MCS Connector , 3.81mm Pitch SP435 SP438
-
24 - 6 AWG Ground Spring Terminal Blocks , Spring-Clipping Connect Ways
-
6P 7mm Pitch 24 - 14 AWG Male MCS Connector With Spring-cage Clamp
-
3.5mm Pitch Male MCS Connector With Spring Cage Clamp SP435 SP438 Series
-
IEC 800V 18A UL 600V 10A 3 Conductor Through Spring Terminal Blocks Of Front - Entry
Product Details
| Brand Name | SUPU | Place of Origin | China | |
| Model Number | 50 PCS |
Product Description
Certification:ROHS, ISO9001, COC, CE, CB, TUV
600V 10A 1 * 2 Conductor Through Spring Terminal Block , Front - Entry Type
Quick details
1*2 Conductor Through Terminal Block
Wire Range 0.2-1.5mm2/24-16AWG.
800V 18A 600V 10A.
Order No.:215959 (Type A, Blue)
◆ Use SUPU spring clipping technology, have the advantages of reliability, shock resistance, maintenance-free, etc.
◆ Operate easily, only need a screw driver.
◆ Print marker card as customer\'s requests.
◆ Mounted on SP35 standard rail (steel or aluminum)
Specifications:
Article: | 1*2 Conductor Through Terminal Block |
|||
Wire Range: | 0.2-1.5mm2/24-16AWG |
|||
IEC | UL | CSA | EN |
|
Rated Voltage: | 800V | 600V | 600V | 800V |
Rated Current: | 18A | 10A | 10A | 18A |
Size (mm/in): | 4×62.5×27mm/0.157×2.46×1.06 in |
|||
Strip length (mm/in): | 8-9 mm/0.33 in |
|||
Wires: | Applied for any kind of wires |
|||
Connect Ways: | spring-clipping |
|||
Entry Type: | Front-entry |
|||
Peak Voltage: | 8KV |
|||
Weight: | ||||
Pollution Severity: | 3 |
|||
UL94 Insulation Material: | V 0 or V 2 |
|||
Insulation Material: | PA66 |
|||
Color: | Blue |
|||
Packing: | 100PCS |
Attachment:
Name | Order No. |
End-and Intermediate | 215151(Gray)215152(Orange) |
Adjacent jumper | 215301 |
Protective Warning Marker | 215701 |
