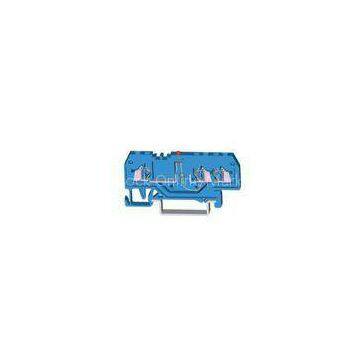

800V 18A 24 - 16 AWG Spring Terminal Block , PA66 Insulation Blue
- T/T L/C D/P D/A
- 7 days
You May Like
-
800V 101A 750V 88A UKH50 Screw Terminal Blocks Side Entry Size 83.5mm
-
4 Conductor Ground 600V 20A Spring Terminal Block with CE , CB , TUV
-
PCB Female 300V 16A 15A MCS Connector With Snap-in Mounting Clamp
-
800V 101A UK16N Ground Terminal Block Strip length 16mm
-
750V 73A Insulated UK10N Ground Screw clamp Terminal Block Green Yellow
-
WAGO 24 - 16 AWG 2 * 2 Conductor Through Spring Terminal Block Side - Marked
Product Details
| Brand Name | SUPU | Place of Origin | China | |
| Model Number | 215954 |
Product Description
Certification:ROHS, ISO9001, COC, CE, CB, TUV
800V 18A 24 - 16 AWG Spring Terminal Block , PA66 Insulation Blue
Quick details
1*2 Conductor Through Terminal Block
Wire Range0.2-1.5mm2/24-16AWG
800V 18A 600V 10A
Order No.:225959(Type A, Blue).
◆ Use SUPU spring clipping technology, have the advantages of reliability, shock resistance, and maintenance-free, etc.
◆ Operate easily, only need a screw driver.
◆ Print marker card as customer\'s requests.
◆ Mounted on SP35 standard rail (steel or aluminum).
|
Article: |
1*2 Conductor Through Terminal Block |
|||
|
Wire Range: |
0.2-1.5mm2/24-16AWG |
|||
|
IEC |
UL |
CSA |
EN |
|
|
Rated Voltage: |
800V |
600V |
600V |
800V |
|
Rated Current: |
18A |
10A |
10A |
18A |
|
Size (mm/in): |
4×62.5×27mm/0.157×2.46×1.06 in |
|||
|
Strip length (mm/in): |
8-9 mm/0.33 in |
|||
|
Wires: |
Applied for any kind of wires |
|||
|
Connect Ways: |
spring-clipping |
|||
|
Entry Type: |
Front-entry |
|||
|
Peak Voltage: |
8KV |
|||
|
Weight: |
||||
|
Pollution Severity: |
3 |
|||
|
UL94 Insulation Material: |
V 0 or V 2 |
|||
|
Insulation Material: |
PA66 |
|||
|
Color: |
Blue |
|||
|
Packing: |
100PCS |
