Chains Transmission 11kw Tile Roof Panel Roll Forming Machine With 22 Stations

Name: Chains Transmission 11kw Tile Roof Panel Roll Forming Machine With 22 Stations
Brand: ZOOY
SKU: 149540782
Availability: InStock

Chains Transmission 11kw Tile Roof Panel Roll Forming Machine With 22 Stations thumbnail-1

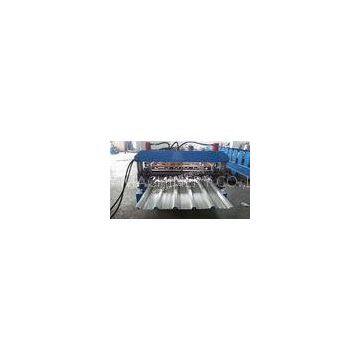

Chains Transmission 11kw Tile Roof Panel Roll Forming Machine With 22 Stations photo-1

US$ 20000$ - 30000$ MOQ: 1 Set

Key Specifications

Get Latest Price

Brand Name:

ZOOY

Place of Origin:

China

Model Number:

ZO-RFHS1220

Contact Supplier Request Quote Chat Now

Wuxi Zooy Machinery Co.,ltd

Payment & Shipping

Payment Methods:

Port of Shipment:

China

Delivery Detail:

7 days

Product Details
Company Profile
Contact Us

Brand Name ZOOY

Place of Origin China

Model Number ZO-RFHS1220

Delivery Time:60days after get 30% down payment
Certification:CE

Chains Transmission Roll Forming Machine With 11kw Driven System, G250 - G550Mpa,22 Stations To Form,Roofing&Cladding

Description

Roll forming main machine	1 unit
5 TONS Un-coiler	1 unit
PLC Control panel	2 unit
Hydraulic station	1 unit
Post-cutting device	1 unit
Motor driven	1 unit
Safety cover device	1 unit
Manual out table	2 unit

Main Specifications

Coil Material	Thickness	0.3-0.8mm
Coil width	Depend on customer’s requires
Yield Strength	250-550Mpa
Material	PPGI, Color Steel, GI. Aluminium
Decoiler / Uncoiler	Coil Width	Max. 1250mm
I.D	510-610mm
O.D	Max. 1300mm
Capability	Max. 5tons
Decoiler type	Manual / Hydraulic/Automatic
Feeding & guiding	Pinch feeding	1 Units ( 2 Rollers )
guiding	2 Rollers
Cutting device	Cutting motion	Hydraulic Cutting, post-Cutting ( cutting sheet after forming )
Cutting blades	Cr12Mov with heat treatment HRC58-62
Length Measuring	Automatic length measuring by encoder & PLC.
Cutting Tolerance	1.5mm(per 3m)
Roll Forming Machine	Forming Stations	ABOUT 20steps

Roller material	45# steel, heat treatment
Diameter of shaft	80mm
Shaft material	High grade 45# steel
Drive type	gear box driven
Forming speed	0-20m/min
Main power	11kw

Electrical control	PLC	PANASONIC Brand or Custom-made
Inverter	YASKAWA Brand or Custom-made
Touch screen	MCGS Brand or Custom-made
Operation type	Touch screen & Button
Hydraulic Station	Hydraulic station	Famous Chinese brand
Hydraulic power	5.5KW
Runout Table	Table type	Simple non-power type
Function	To support the finished panels
WEIGHT		APRRO 8 TONS

The type pursues board

Our Advantage

Stationary style High Quality High Speed Reliable Durable Reasonable Price Good after Service 1 Year Warranty More Than 10Years Experience

.
Warranty: 1 year warranty from date of shipment
Guarantee:
1:Guaranteed against malfunctions due to manufacturing defects for 1 year after date of purchase. Repairs will be made free of charge.
2:Reparis will not be performe
