gangue vacuum extruder/Brick making machine / used clay brick extruder machine made in China
- 300 Set / Sets per Month
- T/T L/C D/P D/A
- 7 days
- China pe200x300 smallest jaw crusher
- Popular compound pendulum jaw crusher price
- 2016 china products stone coated steel roofing tile ,shingle steel roof tile
- 2016 china products lightweight roof tile,blue glazed roof tile
- colored metal roofing prices,sand coated metal roofing tiles
- roofing tiles coated with stones,roofing tiles for houses
Product Details
Brand Name: | Mengda | Place of Origin: | China | Model Number: | JZK |
Product Description
Description:

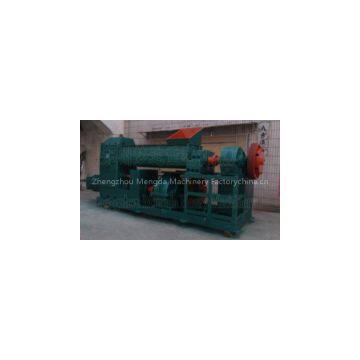

The vaccum extruder is used to produce solid bricks and hollow bricks with great quantities of holes and large section in all size of hole style.
Advantages:
1.rational structure
2.advanced technology
3.high extrusive pressure
4.large yield and high vacuum degree
5.adopts pneumatic clutch remote control.
Structure and Features:
1. The vacuum extruder consists of mixing part and pressing/forming part, which is equipped with air compression system and pumped vacuum system.
2.The pneumatic clutch adopts remote control and the installation of the mixing tank and forming tank is flexible enough for users.
3.rational construction, strong adaptability, big extrusion pressure, low energy consumption, high output, easy maintenance, etc.
4.The reamer of this machine is made of wear-resistance materials which can extend its service life by 4~7 times. And the screw lead is scientifically designed, increasing the extrusion pressure and improving the work efficiency. The machine uses floating axle shaft to avoid sway and instability after a long time operation, an energy saving of 15~30%.
5. The shafts used inside the machine are special ones which are harden by quenching. Hard tooth gear surface is adopted in the reducer.
6. There are safety devices in the splash transmission and material level control, which can protect main machine parts and lengthen the machine service life.
7. There is a pressure meter on the head of the vacuum extruder, with which the press data can be read. The raw materials are disposed by humidification and curing so that users can get a big extrusion pressure and high output.
sales:
1.The device type
2.For customer training and technical personnel
3.According to customer request, design and manufacture products
We sincerely provide best service to new and old customers. including technology for kilns building , production line designing, equipment installation and debugging.
Welcome to visit our factory, we hope that we could cooperate and build long time relationship.
Technical Parameter
Model | Production | Power | Dimension |
Jzk 30-2.0 | 4000 - 6000 | 45 - 55 | 3450x1220x1320 |
Jzk 35-2.0 | 6000 - 8000 | 55 - 75 | 3750x1340x1550 |
Jzk 40-3.0 | 8000 - 10000 | 90 - 110 | 4750x1500x1650 |
Jzk 45-3.0 | 10000 -13000 | 110 - 132 | 4960x1680x1750 |
Jzk 50-3.5 | 13000 -18000 | 55 + 132 | 5350x1800x2100 |
Jzk 55-4.0 | 14000 -20000 | 75 + 180 | 8360x2800x3590 |
