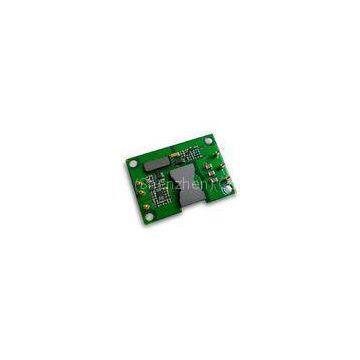

DC-DC Converters 40W Output 5V XD40-24S5-POCW
Key Features
Output power: 40W
Wide input range: 20-60Vdc
High conversion efficiency: Up to 91%
Line regulation to ±1%
Load regulation to ±1%
Fixed operating frequency
Isolation voltage :1500V
Enable (ON/OFF) control
Output over-voltage protection
Output over-load protection
Hiccup mode short circuit protection
Over-temperature protection
Input under-voltage lock-out
Output voltage trim: -8～+10%
Product Overview
These DC-DC converter modules use advanced power
processing, control and packaging technologies to provide
the performance, flexibility, reliability and cost effectiveness
of a mature power component. High frequency Active Clamp
switching provides high power density with low noise and
high efficiency.
1. Electric Characteristics
Electrical characteristics apply over the full operating range of input voltage, output load and base plate temperature,unless otherwise specified. All temperatures refer to the operating temperature at the center of the base plate. All data testing at Ta=25oC except especial definition.
1.1 Absolute Maximum Ratings
|
Parameter |
Min |
Typ |
Max |
Units |
Notes |
|
Input Voltage |
65 |
Vdc |
Continuous, non-operating |
||
|
60 |
Vdc |
Continuous, operating |
|||
|
65 |
Vdc |
Operating transient protection,<100mS |
|||
|
Isolation voltage |
2000 |
Vdc |
Input to output |
||
|
Operating Temperature |
-55 |
100 |
℃ |
||
|
Storage Temperature |
-55 |
125 |
℃ |
||
|
Enable to -Vin Voltage |
-2.0 |
10 |
Vdc |
1.2 Input Characteristics
|
Parameter |
Min |
Typ |
Max |
Units |
Notes |
|
input voltage range |
20 |
48 |
60 |
Vdc |
Continuous |
|
Under-Voltage Lockout |
19.0 |
19.5 |
19.9 |
Vdc |
Turn - On Threshold |
|
18.0 |
18.5 |
19.0 |
Vdc |
Turn - Off Threshold |
|
|
Maximum Input Current |
2.5 |
A |
Full load;20Vdc Input |
||
|
Efficiency |
89 |
% |
Figures 1-4 |
||
|
Dissipation |
5 |
W |
No load |
||
|
Disabled Input Current |
5 |
mA |
Enable pin low |
||
|
Recommend External Input Capacitance |
100 |
uF |
Typical ESR 0.1-0.2W |
1.3 Output Characteristics
|
Parameter |
Min |
Typ |
Max |
Units |
