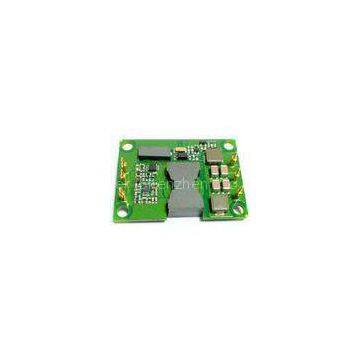

DC-DC Converters 30W Output 12V XD30-24DB12-POC
Features:
Wide input range: 18‐36 V
Output power: 30W
High conversion efficiency: 90%
Line regulation to: ±1%
Load regulation to: ±1%
Input under‐voltage lock‐out
Output over‐current protection
Hiccup mode short circuit protection
Output over‐voltage protection
Enable (On/Off) Control
Isolation Voltage: 1500Vdc
Product Overview:
These DC‐DC converter modules use advanced power
processing, control and packaging technologies to
provide the performance, flexibility, reliability and cost
effectiveness of a mature power component. High
frequency Active Clamp switching provides high power
density with low noise and high efficiency.
1. Electric Characteristics
1.1 Absolute Maximum Ratings
| Parameter | Min | Typ | Max | Units | Notes |
| Input Voltage | 40 | Vdc | Continuous, non-operating | ||
| 36 | Vdc | Continuous, operating | |||
| 40 | Vdc | Impulse voltage,<100ms,operating | |||
| Isolation voltage | 2000 | Vdc | Input to output | ||
| Operating Temperature | -40 | 100 | ℃ | In view of PCB Temperature | |
| Storage Temperature | -55 | 105 | ℃ | ||
| Enable to -Vin Voltage | -2.0 | 15 | Vdc |
1.2 Input Characteristics
| Parameter | Min | Typ | Max | Units | Notes |
| input voltage range | 18 | 24 | 36 | Vdc | |
| Under-Voltage Lockout | 17 | 17.5 | 18 | Vdc | Recovery point |
| 16 | 16.5 | 17 | Vdc | Protect point | |
| Maximum Input Current | 2.1 | A | Vin min,output full load | ||
| Efficiency | 89 | % | Rated input;rated load | ||
| Dissipation | 4 | 8 | W | No load |
1.3 Output Characteristics
| Parameter | Min | Typ | Max | Units | Notes | |
| Output Voltage Set point | +11.88 | +12.00 | +12.12 | Vdc | +Vout | Rated input voltage;Small load |
| -11.60 | -12.00 | -12.40 | Vdc | -Vout | ||
| Output Voltage Range | +11.76 | +12.00 | +12.24 | Vdc | +Vout | |
| -11.50 | -12.00 | -12.50 | Vdc | -Vout | ||
| Output Current Range | 0.2 | 1.3 | A | +Vout | ||
| 0.2 | 1.3 | A | -Vout | |||
| Voltage Regulation | ±1 | % | +Vout | |||
| ±4 | % | -Vout | ||||
| Load Regulation | ±1 | % | +Vout | |||
| ±4 | % | -Vout | ||||
| Output over-current protection | 1.8 | A | +Vout | |||
| 1.8 | A | -Vout | ||||
| Output Short Circui Current | 0 | 5 | A | +Vout | ||
| 0 | 5 | A | -Vout | |||
| RMS | 15 | mV | +Vout |
Nominal input; full load; 20MHz,bandwidth |
||
| 15 |
