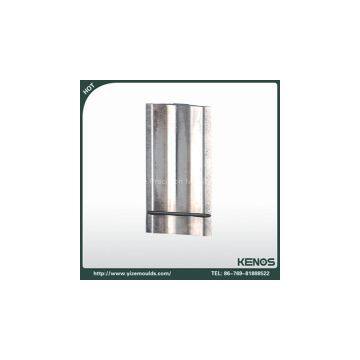

Superior Quality Precision Mould Components

superior quality precision mould components

Structure of precision mold components composition can be divided into the following several parts, forming precision mold components of injection molding, mold oriented parts,introduction of precision mold components products,part of the heating and cooling mode of concrete, concrete supporting part and mould casting, the exhaust channel etc.. That is part of precision mold components assembly mold cavity is directly formed precision mold components, a convex die,core rod or insert, etc.. In order to make the dynamic, precision mold components can be correctly aligned axis and the establishment of the parts, a guide post, a guide hole or slant conical parts etc.. The product launch part. The precision mold components products from precision mold components cavity launched by parts, a top rod, a fixing plate, a push plate and a cushion block. The core spare part. Injection molding with pits or side hole plastic product release, first out of pits, side hole forming the core mechanism parts, such as regular application of oblique guide pillar, inclined sliding block and bent pin core pulling mechanism. The heating and cooling of the die body part. Is to adapt to the control system of plastic injection molding process temperature, such as electrical resistance heating plate, rod and its control elements; cooling by circulating cooling water pipe etc.. The molding concrete support section. Refers to in order to ensure the auxiliary parts mold physical work correctly, such as dynamic, the fixed mould plate, a positioning ring, ring and fastening screws. The casting molten material refers to the runner molten material into mold cavity through the nozzle injection, usually can be divided into the mainstream of the runner, mouth, Bush (gate) and cold trough and other parts. The exhaust hole refers to the exhaust air portion of the mold cavity. General small products without dedicated exhaust hole, cavity air can be discharged from each with a gap; for large precision mold components, you must exhaust hole.
