Certification:CE, RoHS, EN62471

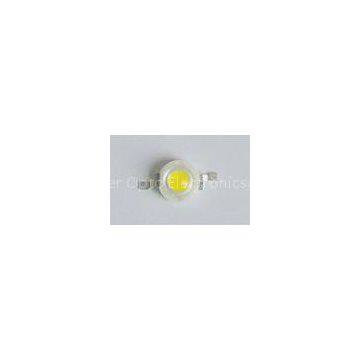

Neutral white 3W high power led module for street light with Bridgelux 45mil chip
Quick Detail:
3W consumption Single chip package, high light efficiency Bridgelux led chip3.4-3.6V, 550mA, up to 130lm/W Size: D8mm*L14.2mm Warm white/Neutral white/Cool white optional CE, RoHS, EN62471 compliance 2 years warranty
Bridgelux 3W COB LED 130 lm/W For Stage Light , LED Light Source
Description:
Exclusive package design, Super high lumens light source Several led chips available, easy selection with your goal. Different beam angle lens available, easy control your lightApplications:
Spotlight Down lignt Bulb Stage lightSpecifications:
Dimension
Electrical/Optical Characteristics (At TA=25°C)
|
Parameter |
Symbol |
Conditions |
Min. |
Avg. |
Max. |
Units |
|
Luminous Flux |
Φ |
IF=550mA |
190 |
-- |
210 |
lm |
|
Color Rendering Index |
CRI |
IF=550mA |
70 |
Ra |
||
|
Color Temperature/ Color coordinates |
CCT |
IF=550mA |
2800 |
-- |
3000 |
K |
|
Forward Voltage |
VF |
IF=550mA |
3.2 |
-- |
3.4 |
V |
|
Luminous efficiency |
Φ |
IF=550mA |
110 |
-- |
120 |
Lm/W |
|
Thermal Resistance Junction To Board |
RΘJ-B |
IF=550mA |
− − |
2 |
− − |
°C/W |
|
Reverse Current |
IR |
VR=17V |
− − |
− − |
2 |
μA |
|
Viewing Angle [1] |
2Θ1/2 |
IF=550mA |
− − |
130 |
− − |
Deg |
Absolute Maximum Rating(At TA=25°C)
|
Parameter |
Symbol |
Ratings |
Units |
|
Power Dissipation |
PD |
1 |
W |
|
Continuous Forward Current |
IF |
550 |
mA |
|
LED Junction Temperature |
TJ |
120 |
°C |
|
Reverse Voltage |
VR |
5 |
V |
|
|
