Help CenterEpistar 35mil Chip 9 Watt 900Lm High Power LED Module With CE
Related Products
-
800Lm 8W High Power LED Module 70 CRI With Epistar LED ChipNegotiableMOQ: 1 Kilogram -
Epistar LED Chip 10W 1000Lm COB LED Module For Flood LightNegotiableMOQ: 1 Piece
-
Epistar 100 Lm/W 70W Integrated LED Module 120 Beam AngleUS$ 14.95 - 15.9/MOQ: 1 Piece
-
Epistar LED Chip 1200Lm 12W Integrated Light Source 70 CRINegotiableMOQ: 1 Piece
-
1200lm 12W High Power LED Module Warm White 120 For Outdoor LightingNegotiableMOQ: 1 Piece
Certification:CE, RoHS, EN62471

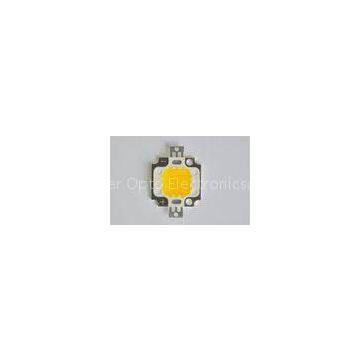

900lm 9W high power led module with Epistar 35mil chip for outdoor lighting
Quick Detail:
9W power consumption Integrated package, high light efficiency Epistar led chip customized 9-11V, 900mA, up to 100lm/W,Ra>70 Size: D20mm*L20mm Warm white/Neutral white/Cool white optional Good thermal conductivity design, well heat dissipation to reduce the light decay and extend the lifetime of the light source. Suitable for wide range applications, the variety of working environment. High light efficiency but low power consumption. With compact structure and convenient for welding operation. 2 years warrantyEpistar 35mil Chip 9 Watt 900Lm High Power LED Module With CE
Description:
With compact structure and convenient for welding operation. Integrated package, 8-15W different power customized Super high lumens light source Several led chips available, easy selection with your goal. Thermal conductivity design, well heat dissipation to reduce the light decay and extend the lifetime of the light source.Applications:
Flood light High bay light Track light Down lightSpecification:
Dimension
Electrical/Optical Characteristics (At TA=25°C)
|
Parameter |
Symbol |
Conditions |
Min. |
Avg. |
Max. |
Units |
|
Luminous Flux |
Φ |
IF=900mA |
900 |
-- |
1000 |
lm |
|
Color Rendering Index |
CRI |
IF=900mA |
− − |
70 |
− − |
Ra |
|
Color Temperature/ Color coordinates |
CCT |
IF=900mA |
2800 |
-- |
3000 |
K |
|
Forward Voltage |
VF |
IF=900mA |
9 |
-- |
11 |
V |
|
Luminous efficiency |
Φ |
IF=900mA |
90 |
-- |
100 |
Lm/W |
|
Thermal Resistance Junction To Board |
RΘJ-B |
IF=900mA |
− − |
2 |
− − |
°C/W |
|
Reverse Current |
IR |
VR=17V |
− − |
− − |
2 |
μA |
|
Viewing Angle [1] |
2Θ1/2 |
IF=900mA |
− − |
130 |
− − |
Deg |
Absolute Maximum Rating(At TA=25°C)
|
Parameter |
Symbol |
Ratings |
Units |
|
Power Dissipation |
PD |
9 |
W |
|
Continuous Forward Current |
|
