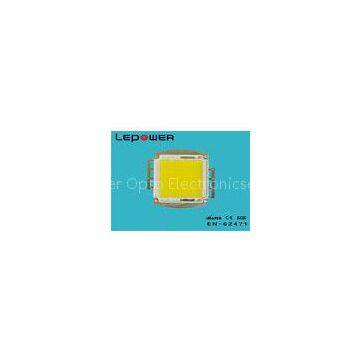

300 Watt COB High Power LED Module 33000lm Nature White For Outdoor Lighting

Delivery Time:5-10 days
Certification:CE, RoHS, EN62471
  300 Watt COB High Power LED Module 33000lm Nature White For Outdoor Lighting


Quick Detail:



240W power consumption 45-51V Voltage, max 5600mA Bridgelux 45mil led chip Warm white/Neutral white/Cool white optional Light efficiency 100-110lm/W, Ra>70 Size 82mmx86mm Working temperature -40—65℃ Beam angle 120° CE, RoHS, EN62471 compliance 3 years warranty

300W Epistar COB LED 33000lm Cool White For Outdoor Lighting


Description:



300W High power led module, 82mmx86mm, easy assemble Red copper led base, excellent thermal dissipation Bridgelux led chip, super reliability High light efficiency up to 110lm/W. 1.2mil 99.99% gold wire, high quality ensured. Widely used in flood light, flash light, stage light, etc.


Applications:


Flood light High bay light Street light Other outdoor lighting

Specifications:


Package Dimensions

Equivalent circuit diagram

Notes:

1. All dimensions are in millimeters.

2. Tolerance is ±0.25 unless otherwise noted

Electrical/Optical Characteristics (At TA=25°C)

Parameter	Symbol	Conditions	Min.	Avg.	Max.	Units
Luminous Flux	Φ	IF=4800mA	30000	--	25200	lm
Color Temperature/ Color coordinates	CCT	IF=4800mA	6000	--	6500	K
Forward Voltage	VF	IF4800mA	45	--	51	V
Thermal Resistance Junction To Board	RΘJ-B	IF=4800mA	− −	0.03	− −	°C/W
Reverse Current	IR	VR=48V	− −	− −	2	μA
Viewing Angle	2Θ1/2	IF=4800mA	− −	120	− −	Deg

Absolute Maximum Rating(At TA=25°C)

Parameter	Symbol	Ratings	Units
Power Dissipation	PD	300	W
Continuous Forward Current	IF	4800	mA
LED Junction Temperature	TJ	120	°C
Reverse Voltage	VR	48	V
Operating Temperature Range	TOPR	-20°C To +60°C
