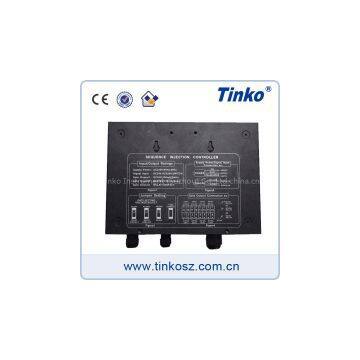

Tinko D600 Sequence Injection Controller Made in China

1.Features:

Small size, easy to mount

Selectable time display mode (1s, 0.1s or 0.01s)

Settable 1~8 independent channel

Selectable output control mode (Mode-A or Mode-B)

Selectable input signal type (DC24V or Switch)

Selectable output signal type (AC220V, DC24V or Relay contact)

Auto/Manual function

Selectable all channels or one of them controlled in manual mode

2.Specification :

Supply Voltage:AC220V,50/60Hz

Control Function:Auto/Manual

Input Type:DC24V/Switch

Time range:0.0~999.9s/0.0~99.9s

Operating Temperature:0°C~50°C(32°F~122°F)

Storage Temperature:-20°C~70°C(-4°F~158°F)

Operating Humidity:10-80%RH(no condensayion)

Channel:1-8

Control Mode:Mode-A/Mode-B

Output Type:AC220V/DC24V/Relay contact

Output Load Capacity:AC220V output:1A/channel

                     DC24V output:3W/channel

                     Relay contact:3A/channel
