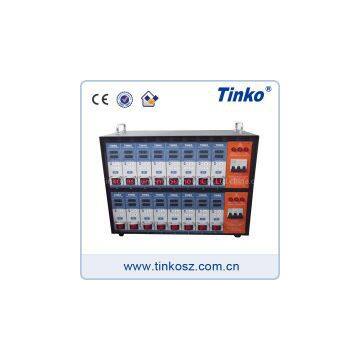

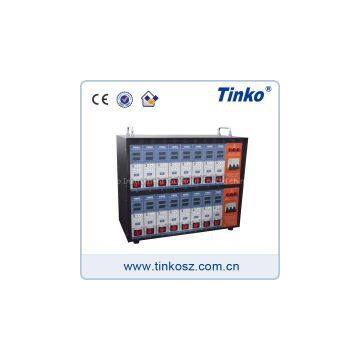

Tinko Brand 16 Zone Dual Hot Runner Temperature Controller China Patent OEM Service

Tinko Brand 16 Zone Dual Hot Runner Temperature Controller China Patent OEM Service thumbnail-1
Tinko Brand 16 Zone Dual Hot Runner Temperature Controller China Patent OEM Service thumbnail-2
Tinko Brand 16 Zone Dual Hot Runner Temperature Controller China Patent OEM Service photo-1
Tinko Brand 16 Zone Dual Hot Runner Temperature Controller China Patent OEM Service photo-2
Negotiable MOQ: 1 Piece (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Brand Name:
Tinko
Place of Origin:
China
Model Number:
HRTC-16D
Contact Supplier Request Quote Chat Now
Tinko Instrument (Suzhou) Co.,Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
7 days

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Brand Name Tinko
Place of Origin China
Model Number HRTC-16D

Specifications:


Model

Application Scope

Main Switch

Power Supply

Module Connection

Dimension(mm)



L*H*W

HRTC-02A

1~2

2P-40A*1

1Phase -3wire



AC220V

16PIN*1 or



Straight-Thru

185*200*290

HRTC-02B

1~2

/

1Phase -3wire



AC220V

16PIN*1 or



Straight-Thru

130*200*290

HRTC-04A

3~4

3P-63A*1

3Phase -5wire



AC380V

16PIN*1

310*210*290

HRTC-06A

5~6

3P-63A*1

3Phase -5wire



AC380V

24PIN*1

410*210*290

HRTC-08A

7~8

3P-63A*1

3Phase -5wire



AC380V

16PIN*2

510*210*290

HRTC-10A

9~10

3P-63A*1

3Phase -5wire



AC380V

24PIN*2

610*210*290

HRTC-12A

11~12

3P-63A*1

3Phase -5wire



AC380V

24PIN*2

710*210*290

HRTC-24A

13~24

3P-63A*2

3Phase -5wire



AC380V

24PIN*4

720*420*290

Features:

Integrated construction permits easy disassembly.

Adopt galvanized steel sheet. Light and handy. High capacity of anticorrosion and antirust.

The card size and electric interface can be compatible with other brands such as YUDO, Athena, DME, PCS, INCOE.

Adopt gold-plated card slot and machine to pressure wielding. Make sure the signals are connected reliably between box and card.

The type of heavy load connections and wiring method can be custom-made.

Adopt cold pressing terminals between wires and heavy load connections to make sure the signals are connected reliably.

There are 2,4,6,8,10,12,24 zones for customers to select.

Specification :

Supply Voltage:AC85V~400V,50/60Hz

Temperature Control Type:PID Control/Manual

Temperature Sensor Type:Thermocouple J, K

Temperature  Measurement Accuracy:±0.25%

Temperature  Control Accuracy:±0.25%

Operating Temperature:0°C~50°C(32°F~122°F)

Storage Temperature:-20°C~70°C(-4°F~158°F)

Operating Humidity:10-80%RH(no condensayion)

Consumed Power:<2.5W

Control Output Type:triac(PWM mode);triac(SSR mode)

Temperature  Measurement Range:0°C~500°C(32°F~932°F)

Temperature  Setting Range:0°C~450°C(32°F~842°F)

Output Load Capacity:20A, 50W~2200W

                         100W~4400W

Power Switch type:HRTC-B: Rocker Switch
