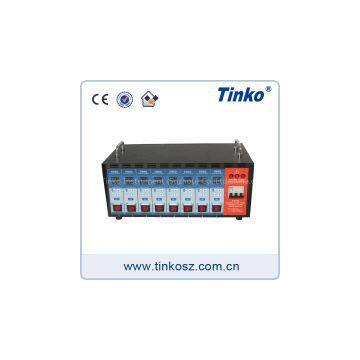

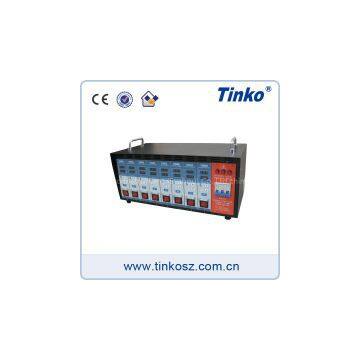

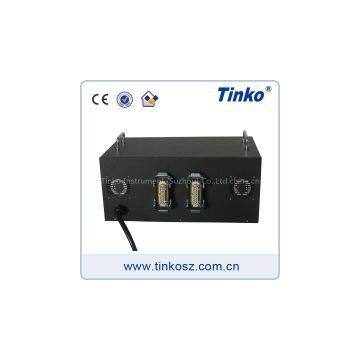

Tinko brand 8 zone digital temperature controllers celsius and fahrenheit display module OEM service

Specification:

Features:

Integrated construction permits easy disassembly.

Adopt galvanized steel sheet. Light and handy. High capacity of anticorrosion and antirust.

The card size and electric interface can be compatible with other brands such as YUDO, Athena, DME, PCS, INCOE.

Adopt gold-plated card slot and machine to pressure wielding. Make sure the signals are connected reliably between box and card.

The type of heavy load connections and wiring method can be custom-made.

Adopt cold pressing terminals between wires and heavy load connections to make sure the signals are connected reliably.

There are 2,4,6,8,10,12,24 zones for customers to select.

Specification :

Supply Voltage:AC85V~400V,50/60Hz

Temperature Control Type:PID Control/Manual

Temperature Sensor Type:Thermocouple J, K

Temperature  Measurement Accuracy:±0.25%

Temperature  Control Accuracy:±0.25%

Operating Temperature:0°C~50°C(32°F~122°F)

Storage Temperature:-20°C~70°C(-4°F~158°F)

Operating Humidity:10-80%RH(no condensayion)

Consumed Power:<2.5W

Control Output Type:triac(PWM mode);triac(SSR mode)

Temperature  Measurement Range:0°C~500°C(32°F~932°F)

Temperature  Setting Range:0°C~450°C(32°F~842°F)

Output Load Capacity:20A, 50W~2200W

                         100W~4400W

Power Switch type:HRTC-B: Rocker Switch

Protection Fuctions:

 1.Wide power supply range, AC85~400V

2.Thermocouple input protection, prevent module damaged by mis-connection

3.Thermocouple & heater inverse protection,prevent thermocouple damaged by mis-connection

4.Soft-start mode, avoid the humidity make the heater burn out
