Certification:CE

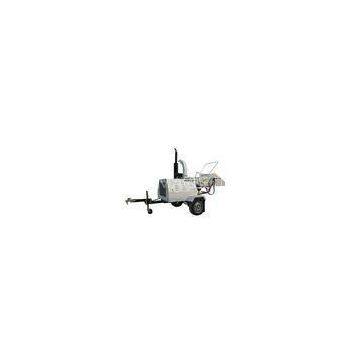

Compost / Charcoal Wood Chipping Equipment Pto Driven Wood Chipper
Quick Detail:
1. CE approved
2. Durable Chromium CR-12 blade
3. Dual hydraulic automatic feeding or mechanical feeding
4. 6-11 CBM/H efficiency
Description:
1. 3PL wood chipper, driven by diesel engine.
2. Cutting diameter size 1cm~25cm, up to 8 inch, 6-11CBM/H cutting capacity.
3. Discharge hood can rotate in 360 degrees. Easy swivel discharge chute.
4. Feeding system: DH22 with mechanical feeding type or single hydraulic feeding type or double hydraulic feeding type.
5. 2 year warranty, heavy duty cast steel bearing housings. 3 blades, round disc housing, easy to change blades and belts.
Applications:
The small chips made by the wood chipper can be used for animal bedding, for the forestry and soil protecting, for new energy making, for compost and for charcoal. Some customers use their colored garden waste chips, cover the soil and made the garden beautiful; some of them use the garden waste chips in the fireplace.
Specifications:
| Model No | DH-22 |
| Power | 22HP |
| Engine | Single cylinder diesel engine with electric start |
| Max Diameter of feeding | 8” diameter (200mm) |
| Feeding system | Mechanical / hydraulic |
| Rotor plate size | 640mm |
| Rotor plate weight | 82KG |
| Knives (blades) number | 1 stationary knife (blade), 2 movable knives (blades) |
| Materials of blades | Durable Chromium CR-12 |
| Dimension of discharge hopper | 1700x1100x1100mm |
| Dimension of feeder hopper | 200x220mm |
| Height of discharge spout | 1800mm |
| Rated RPM | 1080 |
| Rotation Angle of Discharge Spout | 360° |
| Working efficiency | 6-11CBM/H |
| Gross weight | 660KG |
Competitive Advantage:
1. CE approved
2. Baking paint
3. Dural hydraulic feeding
4. Durable chromium CR-12 blade
