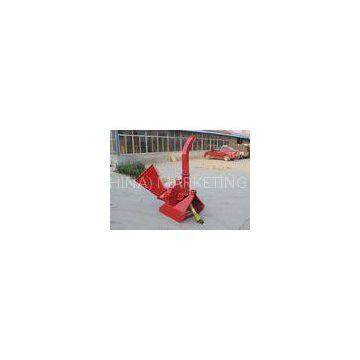

Mechanical Feeding Wood Chip Pellet Machine 3 Point Hitch Pto Wood Chipper
- T/T L/C D/P D/A
- 7 days
You May Like
-
Heavy Duty Wood Cutter Machine Wood Crusher With Compact Structure
-
Reliable Small Pipe Hot Air Flow Dryer For Rice Hull , Wood Sawdust
-
Full Automatic Durable CE Approved Wood Pellets Production Process For Industrial
-
Water / Oil - Based Small Cold Ulv Fogger , Battery Cold Fogging Machine
-
Home Use Biomass Energy Flat Die Wood Pellet Machines With 7.5KW
-
Small Home Used Flat Die Pet Pelletizing Machine With High Density
Product Details
| Brand Name | Wholly | Place of Origin | China | |
| Model Number | BX42 |
Product Description
Certification:CE
Mechanical Feeding Wood Chip Pellet Machine 3 Point Hitch Pto Wood Chipper
Quick Detail:
1. CE approved
2. Durable Chromium CR-12 blade
3. Dual hydraulic automatic feeding or mechanical feeding
4. 635mm Rotor size
Description:
1. 3PL wood chipper, driven by diesel engine.
2. Cutting diameter size 1cm~25cm, up to 8 inch, 8-9CBM/H cutting capacity.
3. Discharge hood can rotate in 360 degrees. Easy swivel discharge chute.
4. Feeding system: BX42 with hydraulic feeding system and manual feeding system.
5. 2 year warranty, heavy duty cast steel bearing housings.
Applications:
The small chips made by the wood chipper can be used for animal bedding, for the forestry and soil protecting, for new energy making, for compost and forcharcoal. Some customers use their colored garden waste chips, cover the soil and made the garden beautiful; some of them use the garden waste chips in the fireplace.
Specifications:
| Model No. | BX42S / BX42R |
| Drive System | Direct drive, PTO shaft |
| Matched tractor power range | 18-50HP |
| Max diameter of feeding | 4\" (100mm) |
| Chipper Housing Opening | 4\"x10\" (100mm*250mm) |
| Rotor Size | 25\" (635mm) |
| Number of Rotor Knives | 4 |
| Knife Type | Hardened tool steel |
| Rotor Weight | 130 lbs (60KG) |
| Feeding System | Manual / Hydraulic |
| Mounting System | 3 Point Hitch |
| Dimensions (Hopper Folded) |
40\"L x42\"W x 60\"H (1016*1067*1524mm) |
| Dimension of hopper opening | 20\" x 20\" (508mm*508mm) |
| Discharge Hood Rotation | 360° |
| Discharge Hood Height | 60\" (1524mm) |
| Rated RPM | 540-1000RPM |
| Weight | 425lbs / 475lbs 193KG / 215KG |
Competitive Advantage:
1. CE approved
2. Baking paint
3. Dural hydraulic feeding
4. Durable chromium CR-12 blade
