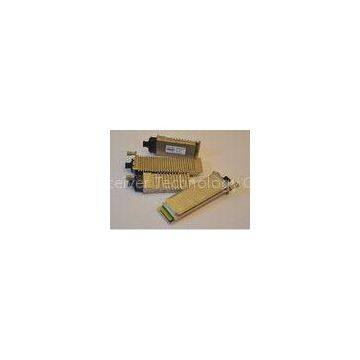

Singlemode Fiber 10G CWDM X2 Module 1550nm 1570nm For Datacom 10G Ethernet
Specification:
|
P/N |
AO2-CXXXX-R40 |
|
Datarate |
10.3G |
|
Wavelenth |
CWDM 1470 1490 1510 1530 1550 1570 1590 1610 |
|
Distance |
40KM |
|
Transmitter |
DFB |
|
Receiver |
PIN |
|
Media |
SMF |
|
DDM/DOM |
YES |
|
Connector |
SC |
|
Application |
Datacom 10G Ethernet/10x FC |
|
Operating Temperature |
0℃~ +70℃ |
|
Voltage Supply |
3.3V |
|
Certification |
CE/FCC/RoHS/TUV/UL |
|
Brand |
AscentOptics/Neuter, OEM |
10G CWDM X2 1470-1610nm 40km single-mode Datacom 10G Ethernet/10x FC
Description:
10GBASE X2 modules offer customers a wide variety of 10 Gigabit Ethernet connectivity options for data center, enterprise wiring closet, and service provider transport applications.Support 10GBASE Ethernet
Hot-swappable input/output device plugs into an Ethernet X2 port of a switch or router to link the port with the network .
Provides flexibility of interface choice.Supports \"pay-as-you-populate\" model
Has optical interoperability with respective 10GBASE Xenpak, 10GBASE XFP and 10GBASE SFP+ modules on the same link
Features
Wavelength selectable to ITU-T standards covering CWDM grid Compatible with X2 MSA Rev2.0b Support of IEEE 802.3ae 10GBASE-ER at 10.3125Gbps Transmission Distance up to 40Km(SMF) SC Receptacle CWDM Cooled EA Laser and PIN photodiode SC Duplex Optical Connector Hot Pluggable 70-PIN Connector with XAUI Electrical Interface Management and control via MDIO 2-wire interface Power Supply : +5V, +3.3V, APS(+1.2V) Diagnostic Optics Monitoring Temperature Range: -5~ 70 °C ROHS CompatibleApplications
10GE Ethernet switches and routers 10GE Core-routers 10GE Storage Other 10Gbps Ethernet Transmission SystemAscentOptics 10G X2 transceiver
| P/N | Data Rate | Distance | Wavelength | LD | PD | DDM | Media |
| AO2-8192-SR | 10.3 | 300M | 850nm | VESCEL | PIN | Y | MM |
| AO2-3192-LR | 10.3 | 10KM | 1310nm | DFB | PIN | Y | SM |
| AO2-3192-LW | 9.95 | 10KM | 1310nm | DFB | PIN | Y | SM |
| AO2-3192-LRM | 10.3 | 220M | 1310nm | DFB | PIN | Y | MM |
| AO2-5192-ER | 10.3 | 40KM | 1550nm | DFB | PIN | Y | SM |
| AO2-5192-ZR | 10.3 | 80KM | 1550nm | DFB | APD | Y | SM |
| AO2-CXXXX-R40 | 10.3 | 40KM | CWDM XXXXnm | DFB | PIN | Y | SM |
| AO2-CXXXX-R80 | 10.3 | 80KM | CWDM XXXXnm | DFB | APD | Y |
