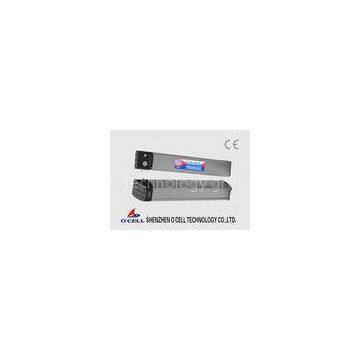

36V 13AH li-ion E-Bike Battery Pack, LiFePO4 Batteries For Electric Bicycle
Electric bicycle battery 36V13AH LiFePO4 (Rear rack )
Detailed Product Description
36V13AH Rear rack battery for electric bicycle
Material:LiFePO4
Dimention: 56*150*510mm
1.stable and safe
2.long cycle life
LiFePO4 battery specification:
|
Product specification parameter |
||
|
Model |
F36/13 |
|
|
Capacity(0.2 C5A) |
13Ah |
|
|
Nominal Voltage |
36V |
|
|
Charge Voltage |
44.4V |
|
|
Discharge Cut-off Voltage |
24V |
|
|
Standard charge current |
2A(0.2 C5A) |
|
|
Max. continuous discharge current |
10A (2 C5A) |
|
|
Max. pulse discharge current(≤1s) |
30A (3 C5A) |
|
|
Battery Structure |
12S4P(Add PCM ) |
|
|
Packaging Shell |
Rear rack |
|
|
Weight (Approx.) |
7±0.05kg |
|
|
Dimensions(Approx.) |
L510mm*W150mm*56mm |
|
|
Impedance (Max, at 1000Hz) |
210mΩ±10 |
|
|
Cycle Life(80DOD%) |
≥1000 times |
|
|
Self-discharge Rate |
≤3% |
|
|
Charge Method (CC/CV) |
Standard |
0.2C5A×6.5 hr. |
|
Quick |
1 C5A×2.5 hr. |
|
|
Operating Temperature |
Charge |
0°C~45°C,32oF~113oF |
|
Discharge |
-10°C~60°C, -4oF~149oF |
|
|
Storage |
-20°C~45°C, -4oF~113oF |
BMS Spec
1. Operating current: 10-20A
2. Peak current: 20-30A
3. Charge current: 2A
4. Over-voltage protection: 44.4V
5. Under-voltage protection: 24V
6. Over-temperature protection: 60°C
Charger Specification:
1. Output: 36V DC 2A
2. Input: 100-240VAC (As your country\'s standard)
Packing List:
1) 1pack 36V 12AhLiFePO4 Battery (Aluminum Alloy Shell)
2) 1pcs 44.4V 10A-20A BMS
3) 1pcs 36V2Amps Alloy Charger
4) Key and other parts
1. Features:
1) Long cycle life
2) Maintenance-free operation
3) Good safety performance
4) Low self-discharge and fast charge
5) Environment friendly
6) High capability and stability
7) Broad operating temperature range: discharge temperature: -20-60°c
24v, 36v, 48V battery with different capacity are available for E-bike, the battery can be customize per customer request.
If you have any question, please feel free to contact Coco Guo.
