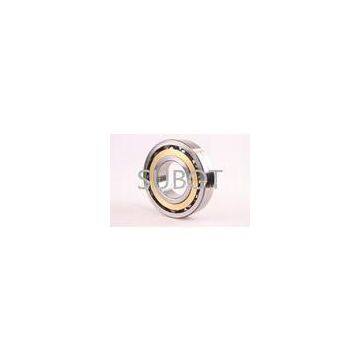

High Precision Angular contact ball bearings 7209 7210 7211 7212 7213 7214 7215 7216 7217/C
Quick Detail:
Product name: Angular contact ball bearing
Model number: 7209,7210,7211,7212,7213,7214,7215,7216,7217
Precision rating:P0 P6 P5
Number of row: single row
Cage:Stamping steel,Brass,Nylon,Ceramic
Material:Gcr15,Stainless steel,Carton steel,Plastic,Ceramic
Description:
Angular contact ball bearings can bear radial load and axial load at the same time, also can withstand pure axial load which is determined by the contact Angle. It can work under high speed.Under the effect of axial force, the contact Angle increases, the greater the contact Angle, the higher the axial load.
Applications:
angular contact ball bearings are used for machine tool spindles, high frequency motors, gas turbines , centrifuges, small car front wheel , differential pinion shaft , booster pumps, drilling platforms, food machinery, dividing head , welding machine , low noise cooling towers , electrical and mechanical equipment, painting equipment , machine slot board , arc welding machine.
Specifications:
| Bearing No | Boundary dimensions (mm) | Weight (kg) | ||
| d | D | T | ||
| 7209C | 45 | 85 | 19 | 0.41 |
| 7210C | 50 | 90 | 20 | 0.45 |
| 7211C | 85 | 110 | 21 | 0.60 |
| 7212C | 60 | 110 | 22 | 0.81 |
| 7213C | 65 | 120 | 23 | 1.01 |
| 7214C | 70 | 125 | 24 | 1.08 |
| 7215C | 75 | 130 | 25 | 1.68 |
| 7216C | 80 | 140 | 26 | 1.48 |
| 7217C | 85 | 150 | 28 | 1.88 |
Competitive advantages:
Our company product and export bearings for 20years,so we have a deep knowledge of bearing.we can guarantee the quality and the price ,and we ensure our production can meet your requirement. In addition ,we can manufacture the production according your requirement.
Our company main production:
Deep Groove Ball Bearing / Angular Contact Ball Bearing/ Taper Roller Bearing/ Spherical Roller Bearing /Cylindrical Roller Bearing / Thrust Ball Bearing /Thrust Roller Bearing /Self-aligning ball bearing/Self-aligning roller bearing/Pillow Block Bearing /Needle Roller Bearing /Tracking Roller Bearing/ Auto Bearing Etc.
Welcome to inquire bearing.
Your inquiry related to our product & price will be replied within 24 hours.
