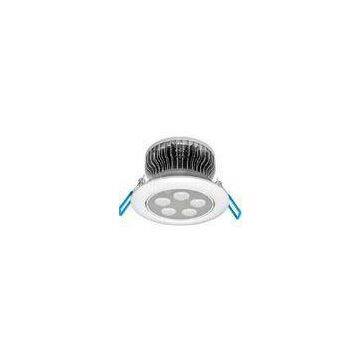

2800 - 6300K Museum Cob Led Downlight 5w With Epistar Chip AC100V - 240V

AG-DL-5W Can be made dimmable light as customer’s request.

Quick Detail:

 Series:COB LED Downlight

  Part Number: AG-DL-5W

 Product Description: 5W LED Downlight

 Light source:   LED 5pcs

 Driver: Constant-Current Driver

 Material: Aluminum+Cok-joined lens

 Color options: Silvery/Black/Golden/White Anodized

 Fitting adjustable: NON Adjustable

 Replacement of traditional lighting 20-40W  2800-6300K

Description:

Product Feature:

 Light hidden deep, anti-dazzle design;

 5leds of 5W as light source, No ghost image;

 Environment temperature -10℃~+40℃;

 Wide operating voltage range AC85V-265V.

Application Place: shops, hotels, showrooms, arts, museums ,home, and others;

Technical Parameters:

Input Voltage:110-240VAC.50/60HZ

LEDs:5x1W

Wattage:5W

Beam Angle:35°

Color Temperature:3000K-6500k

Led luminous efficiency:≧500Lm

Power factor:≧0.9

CRI:Ra≧80

Material:Aluminum die casting+Translucent glas

Working temperature:-20℃to+60℃

Power supply: external isolation

life:≥40000Hours

Size: Φ108x62mm

Cut hole:86.6mm

Application:

Office lighting, home lighting, Commercial shops, hotels, exhibition halls, art gallery, Museum, and so on.

Specifications:

Competitive Advantage:

1,Radiating  material is 1060 pure aluminum, with good heat transfer and conduction, and use button FIN

 technology, patent  design and manufacture.

2, We have increased contact area of aluminum plate and heat dissipation body,  decrease the aperture,

to reduce the air resistance, and speeds up the heat conduction velocity of aluminum plate .

3, There is wind hole in each fins, patches to form annular channel for air convection , make heat of the

body sink and derived with hot air convection.

4, The fins quantity is minimum 42 pieces, and contact area to air is large, with good effect of ventilation

convection, with at least 5℃ lower than car aluminum technology of  (MR16-3 w),   and 11℃ lower of (PAR38).

5, The power supply is in the circular power supply box with insulation retardant , according with the safety

inspection, to ensure safe use. It has up and down air convection hole, to insure the heat generated from the

power diffuse into by air convection , and reduce power internal temperature, to prolong the life span of the

 power supply, and ensure the life span of lamps.

6, Assemble with twist structure ,
