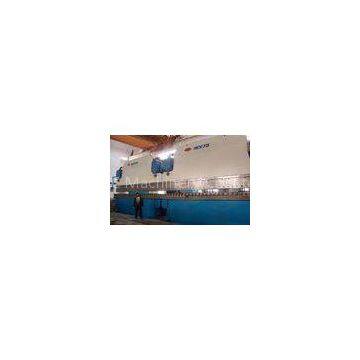

Help CenterHydraulic CNC Tandem Press Brake Heavy Duty Plate Bending Machine 2-400T / 7000mm
Related Products
-
3200N 8000mm Cnc Tandem Press Brake / Hydraulic Bending Machine for Lamp PoleNegotiableMOQ: 1 Set -
Large CNC Tandem Press Brake Machine For Bending Steel Plate 2-600T / 6000mmNegotiableMOQ: 1 Piece
-
Mechanical Hydraulic CNC Tandem 200 Ton Press Brake Machinery for Industrial 3200mmNegotiableMOQ: 1 Piece
-
800T / 6000mm Electric Hydraulic CNC Tandem Press Brake With Bending Steel PlatesNegotiableMOQ: 1 Set
-
CNC Tandem 1000 Ton Press Brake For Electric Power Communication Industry WIth ISONegotiableMOQ: 1 Set
Certification:ISO9001
Detailed Product Description:
| CNC Control System: |
Delem DA-52 DA-56 DA-66T |
Function: | Bending Steel Plates |
| Product Name: | CNC Tandem Press Brake | Steel Sheet Thickness: | 8mm |
| Steel Sheet Width: | 14000mm | Use: | Metal Plates |
Quick Detail:
Metal Plates Hydraulic CNC Tandem Press Brake for auto industry 2-400T/7000mm
Select And Use DELEM DA52 CNC Control System
1. punch force: 8000KN
2. bending max steel sheet width :14000mm
3. bending max steel sheet thickness :8mm
Description:
1. Electro-hydraulic servo system,closed loop controls slider running accuracy.
2. The unique patented technology:bilateral deflection compensation of the large press brake .
3. Open width adjustable inserts die to meet a variety of workpieces.
4. A variety of auxiliary institutions could meet users’ requirements and make the process more convenient and efficient.
5. The frame of machine is composed of tank, worktable, left and right housings and
ram. So it has high strength and good rigidity. Also it takes vibration to eliminate
stress.
6. Synchronization working principal of both machines:Adopting electric-hydraulic
proportional valve to ensure the synchronization of both machines. The proportional valve is made by BOSCH company with very good performance such as small friction between mechanic action pairs, fine electronic amplifier and electric magnet with high controlling force and continuous action. There are two raster displayers on both sides of machine to inspect the position of ram continuously and feed back the signal to control system, then the control system will control electric-hydraulic valve to make two cylinders synchronization on one machine. Because the raster displayers are installed to “C” plates, not on housing plates directly, the deflection of ram and frame when working will not effect its measuring and controlling precision. When two machines working together, the differential potentiometer installed between two machines will transfer the mechanic synchronizing signal into electronic one and feed back to synchronization plate and control system. The signal will be enlarged by BOSCH amplifier to control the synchronization of both machines by controlling electric-hydraulic proportional valve. So the synchronization of two machines is achieved with high precision.
7. Through computer,the operator could communicate with machine. The computer has several service language, calculate and adjust the bending force automatically. Also it could calculate and control the dead point, speed changing point.The strokes (Y1, Y2) of ram could make a small tilt to meet the special requirement of user.
8. Equipped with good guiding system, position measuring system and hydraulic balance system to meet the requirements of full length job and eccentric job.
9. Worktable compensation unit is adopted to make up for deflection of machine when working to make sure the precision of work piece.
10. The surface of cylinder has good wearing and heat treatment, so it has good lubrication and long service life
Applications:
CNC press brake machine is widely used in large steel structure, steel tower, truck carriage, electric cabinet, decoration industrial. With different dies provided, the subscriber can get the metal plate bent into different shapes of work pieces.
Specifications:
Main Technical Features
| NO. | Name | Value | Unit | Remark | |
| 1 | Working force | 2×4000 | KN | ||
| 2 | Length of table | 2×7000 | mm | ||
| 3 | Distance of column | 5600 | mm | ||
| 4 | Throat depth | 720 | mm | ||
| 5 | Open height | 830 | mm | ||
| 6 | stroke | 320 | mm | ||
| 7 | Speed of ram slide block | Approach | 60 | mm/s | |
| Working | 7 | mm/s | |||
| Return | 60 | mm/s | |||
| 8 | Main motor | 30 | KW | ||
| 9 | Overall dimen |
