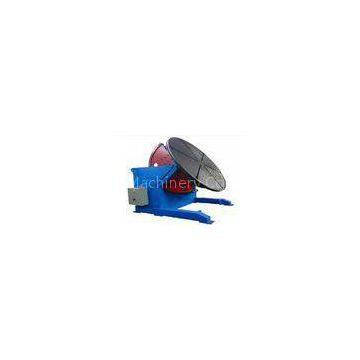

High precise Portable Automatic Welding Machine , Welding Positiner auxiliary equipment
- T/T L/C D/P D/A
- 7 days
You May Like
-
Conventional self aligning welding rotator , Automatic Welding Machine for pipe
-
Steel structure H beam shot blasting machine / Roller Conveyor Sand Blasting Machine
-
Large l beam , H beam Steel Shot Blasting Machine for buildings , bridges
-
Roller conveyor steel plate shot blasting machine for Forging , Foudry , Casting Industry
-
Slotting , Hydraulic CNC V-Grooving Machine Cutting length 4000mm
-
Sheet Metal CNC V-Grooving Machine , auto v grooving machinery 0.6 - 4mm
Product Details
| Brand Name | cmc | Place of Origin | China | |
| Model Number | HB series |
Product Description
Certification:ISO
Quick Detail:
| Name | Welding Positiner |
| Other Name | Positioner |
| Brand Name | CMC |
| Feature | Speed regulation type |
| Advantages: | Delicate design, high precise rotation, small inertia, good braking and stable running. |
Applications:
Positioner is a special welding auxiliary equipment in welding process. It is suitable for rotary work to get the ideal working position and welding speed.With operating machines, automatic welding machine, they can composed to a welding center.
Features:
1, Delicate design, high precise rotation, small inertia, good braking and stable running.
2, There are many types such as side inclined type ,head-tail lifting rotary type, head-tail inclined type and double rotaty type for your selection.
3, The worktable adopts imported converter to adjust speed, runing stable .
4, The overturn of worktable adopts worm gear transmission. It can turnover within 120° with constant speed, the torque is big.
5, Adopts manual control box for remote control, easy to operate.
6, Application for weld rotating workpiece such as bearing, disc, cylindrical shape , etc.
7, Equiped with welding operation machine to realize automatic welding, and it can be the ancillary equipmentfor for robot to achieve automatic welding.
Technical parameter:
| Model | HB-3 | HB-6 | HB-12 | HB-30 | HB-50 | HB-100 | ||
| Maximum.Loading Bearing kg | 300 | 600 | 1200 | 3000 | 5000 | 10000 | ||
| Worktable Turning Speed rmp | 0.2-2 | 0.09-0.9 | 0.05-0.5 | 0.05-0.5 | 0.05-0.5 | 0.02-0.2 | ||
| Worktable Turnover Speed rmp | Manual or Electrically Driven | 0.8 | 0.5 | 0.3 | 0.3 | 0.2 | ||
| Worktable Size mm | Φ600 | Φ800 | Φ1200 | Φ1400 | Φ1500 | Φ2000 | ||
| Wortable Turnover Angle | 0-90° | 0-120° | ||||||
| Maximum Eccentric Distance mm | 150 | 200 | 250 | 300 | 300 | 400 | ||
| Maximum Center-of-gravity Distance mm | 200 | 150 | 200 | |||||
| KW | Rotation | Moter Power kw | 0.37 | 0.75 | 1.1 | 1.5 | 2.2 | 3 |
| Overturn | 0.37 | 0.75 | 1.5 | 3 | 4 | 5.5 | ||
| Speed regulation Type | Frequency Stepless Speed Regulation |
Other special positioners
1.20T rotating platform
2.Pipe positioner
.
3.Special welding positioner
4.Pipe special welding machine for flange
