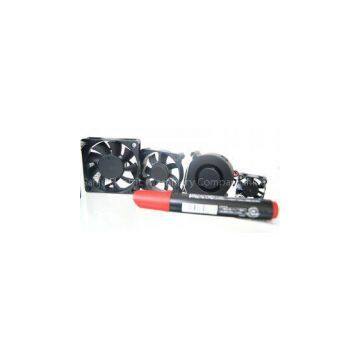

Ball or Sleeve Bearing 70mm - 120mm High, Middle, Low Speed DC Ventilation Fan

Ball or Sleeve Bearing 70mm - 120mm High, Middle, Low Speed DC Ventilation Fan thumbnail-1
Ball or Sleeve Bearing 70mm - 120mm High, Middle, Low Speed DC Ventilation Fan photo-1
Negotiable MOQ: 1 Pole (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Brand Name:
Place of Origin:
China
Model Number:
DC Fan
Contact Supplier Request Quote Chat Now
Sanju Electric Machinery Company
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
7 days

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin China
Model Number DC Fan
Delivery Time:20-30 work day

Ball or Sleeve bearing 70mm - 120mm High, Middle, low speed DC Ventilation Fan

Voltage:12V , 24V, 48V Insulation Resistance:10M AT 500VDC Dielectric Withstand:Between lead or terminal and housing 700VAC for 3 secretary or 500 VDC for 1Min Opetation Temperature:-10℃～70℃(Ordinary humidity) Storage Temperature:-40℃～70℃(Ordinary humidity) Life Expectancy:Ambient temperature 25℃ and humidity 65%

                                        Ball bearing:50, 000Hours

                                        Sleeve bearing:30, 000Hours

Detail More:

●Brushless DC Fan, Cheap Fan, Portable Fan

●Various Size

●High speed , Middle speed, Low speed

●Plastic Frame

●7 blades or 9 blades

●12V DC or 24V DC

●Ball bearing or Sleeve bearing

●Terminal or Lead wire

Applications:

San Ju’s fan products are utilized by all type of machines which required heat reduction systems, UPS systems; Telecommunication equipments; Ventilating systems; LED Digital signage; Disports/exercise equipments; Medical instruments.

Specifications:

Dimension Model

Part number Terminal

Lead wire

Bearing Syetem

Rated Voltage

(V)

Current

(A)

Speed

(RPM)

Air Flow

(CFM)

Static Pressure

(Inch-H2 O)

Noise Lever

(dB-A)

Weight

(g)

120x120x38mm  SJ1238HDl  1238HDlS(B)PL  Ball Sleeve 12 0.56 0.63 3000 114.26 10.39 42 262
SJ1238MDl  1238MDlS(B)PL  Ball Sleeve 12 0.38 0.45 2700 102.83 9.35 37 262
SJ1238HD2 1238HD2S(B)PL  Ball Sleeve 24 0.31 0.33 3000 114.26 10.39 42 262
SJ1238MD2  1238MD2S(B)PL  Ball Sleeve 24 0.22 0.24 2700 102.83 9.35 37 262
120x120x25mm  SJ1225HDl  1225HDlS(B)PL  Ball Sleeve 12 0.19 0.20 2000 74.06 4.26 35 140
SJ1225MDl  1225MDlS(B)PL  Ball Sleeve 12 0.16 0.17 2000 67.33 3.88 31 140
SJ1225HD2 1225HD2S(B)PL  Ball Sleeve 24 0.13 0.13 2000 74.06 4.26 35 140
SJ1225MD2  1225MD2S(B)PL  Ball Sleeve 24 0.11 0.12 2000 67.33 3.88 31 140
92x92x25mm  SJ9225HDl  9225HDlS(B)PL  Ball Sleeve 12 0.31 0.34 2800 57.47 3.74 34 78
SJ9225MDl  9225MDlS(B)PL  Ball Sleeve 12 0.25 0.26 2500 51.31 3.34 28 78
SJ9225HD2 9225HD2S(B)PL  Ball Sleeve 24 0.17 0.20 2
