Plastic Toilet Cleaner Cap Mould/Cleaner Bottle Cap Mould

Plastic Toilet Cleaner Cap Mould/Cleaner Bottle Cap Mould thumbnail-1
Plastic Toilet Cleaner Cap Mould/Cleaner Bottle Cap Mould thumbnail-2
Plastic Toilet Cleaner Cap Mould/Cleaner Bottle Cap Mould photo-1

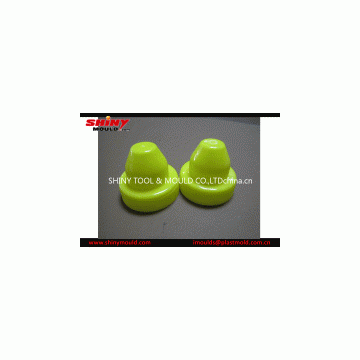

Plastic Toilet Cleaner Cap Mould/Cleaner Bottle Cap Mould photo-2
US$ 10000 - 10000 MOQ: 1 Piece
Key Specifications
Get Latest Price
Brand Name:
SHINY MOULD
Place of Origin:
China
Model Number:
SMC-012
Contact Supplier Request Quote Chat Now
Shiny Tool & Mould Co.,ltd
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
7 days

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Brand Name SHINY MOULD
Place of Origin China
Model Number SMC-012

Cleaner Cap Mould Detailed Description:

Product: Cleaner Cap

Plastic Material: PE

Cavity No.: 4

Mold Life: 1 million shots

Mold Steel: DIN1.2316

Injection Gate: Pin Point & Hot Runner

Cycle Time: 10s

 Cleaner Bottle Cap Mould\" ori-width=\"800\" ori-height=\"534\" data-width=\"676\" data-height=\"437\"/> Cleaner Bottle Cap Mould\" ori-width=\"800\" ori-height=\"534\" data-width=\"657\" data-height=\"445\"/> Cleaner Bottle Cap Mould\" ori-width=\"600\" ori-height=\"600\"/>

Mold Steel:

Cavity & Core: DIN1.2316, made in Germany,HRC 48-52.

Inserts & slides steel: H13(DIN1.2344), tempered with HRC 42-55. Nitrided with HRC 60-65.

Mould Spare parts: H13(DIN1.2344), tempered with HRC 40-45, Nitrided with HRC 60-62.

Mould Base: SC 50#,made in Japan.



SHINY TOOL & MOULD CO.,LTD

Process of Injection Mould Design



  • determine the number of the cavity

  • select parting surface

  • cavity configuration

  • determine gating system

  • determine demoulding way

  • structural design of cooling system and ejection mechanism

  • determine structure and fixed mode of female die and core

  • determine exhaust way

  • draw the structural sketch of mould

  • check the measurement of mould and injection molding machine

  • check the stiffness and strength of mould parts

  • draw mould assemble drawing

  • draw mould detail drawing

  • compile design instruction

  • review the design
