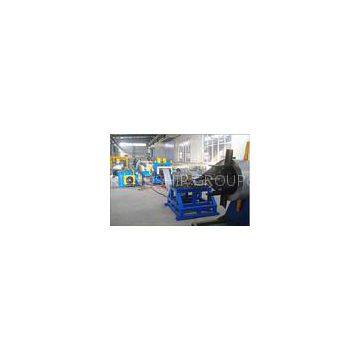

21.5KW Roll Forming Machines With Hydraulic Cutting And Punching Device

Delivery Time:30-60days
Certification:ISO
21.5KW Roll Forming Machines With Hydraulic Cutting And Punching Device The equipment is consisted with auto-de-coiler, guide frame, lever/feeding section, continuous bottom hole punching section, forming section, positioning and cutting section, collection table and electrical control system etc. Shelf forming machine is FRIENDSHIP MACHINERY CO., LTD. According to market demand by the collection year production cold rolling equipment experience independently designs a series or products. Product: Shelf column, Shelf crossbeam, Shelf stay rod, Shelf plywood etc.

Brif introduction of machine

 Material of coil :Mild steel galvanized sheet  Width of coil:≤ 400mm,  Thickness of steel material: 1-2.5mm  Production speed: 8-15m/min  Total power: About 21.5kw  Transmission : gear box  Motor : Siemens  Color: Blue(according to customer requirement)  Size of machine:35m*4m*3.9m(L,W,H)

Technical parameter of shelf roll forming machine

No.	Name	Parameter
1	Suitable raw materials	type	Mild steel galvanized sheet
Plate strength	≥350
Plate thickness	1.2~2.5mm
2	specification	See the picture
3	speed	6~8
4	Material of the roller	GCr15  Hardening treatment
5	drive type	Gear box
6	power	About45
7	Electrical control system	PCL frequency control
8	Size(length width height)	35mX4mX3.9m

The features of shelf roll forming machine

This machine is fully automatic and high speed producing continuously, one set of forming rolls can produce various sizes of shelves just by simply changing the width and length settings on the control screen then machine will be adjusted by servo motor to get the correct products.   The machine can be also complying with in line punching and bending-over to reduce the cost caused by the 2nd process.   Main motor is AC motor with inverter to achieve high-speed massive producing. Quick or slow speed can be adjusted freely.   In the end of the line there is a cut-off plus bending-over device to make the last process and the tolerance of the products length can be within ±１mm.


Machine Components

NO.	Name	Unit	Qty
1	De-coiler	Set	1
2	Leveling Device	Set	1
3	Feeding Material Device	Set	1
4	Punching Device	Set	1
5	Roll Forming Device	Set	1
6	Straightening Device	Set	1
7	Hydraulic Cutting Device	Set	1
8	Products Stand Tables	Set	1
9	Computer Box	Set	1
10	Hydraulic Station	Set	1

Processing flow chart

Decoiler--Leveling Device -- Punching Device -- Feeding Material Device--Roll Forming

Equipment-- Straightening Device-- Hydraulic Cutting Device--Products Stand Table

The profile drawing and product
