1. Product Specification

1.1 Product Overview

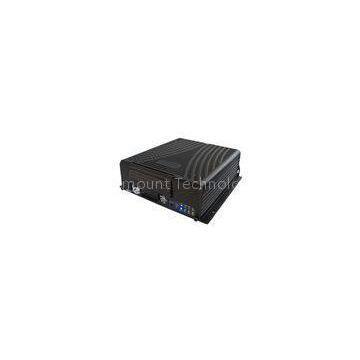

Hard Disk Mobile DVR (Automotive) is a cost-effective, multi-functional device designed for video surveillance and remote monitoring of your mobile assets. It uses a high-speed processor, an embedded Linux platform, and the most advanced technology in the IT field, such as H.264 Video Compression/Decompression, 34G network transmission technology and GPS positioning technologies. MDVR can realize four/eight channel video recording. Each channel supports CIF, HD1 and D1 image solution. Drivers\' driving information, GPS data and alarm data are recorded in Hard disk which is used as the storage medium. The MDVR may look simple in its exterior design, provides powerful auto black box features, installation flexibility and high reliability.

1.2 Key Features

4/8 channel video & audio synchronous real-time recording and playback

4ch D1@25fps; 6ch D1@25fps, 8ch HD1@25fps , 8ch CIF@25fps options.(PAL)

Built-in 2.5 inch HDD/SSD, supports max 1TB, Professional hard disk damping technology.

4G network , such as HSUPA/HSDPA/WCDMA/EVDO is selectable. Built-in GPS module.

Built-in G-sensor

External WIFI special interface.

Built-in 1 SD card for backup recording when HDD/SSD errors.

2 high speed USB2.0 interfaces, the front is used to export record file. The back is use to mirror recording for waterproof and fireproof.

8 digital alarm inputs, 2 digital level output.

3 RS485 interfaces, 1 RS232 interface.

Built-in hard disk heating technology. It can be worked in -40℃～+75℃. Power supply: 8V～36V

MDVR detail specifications to see Table 1

Table 1 : MDVR Specifications
