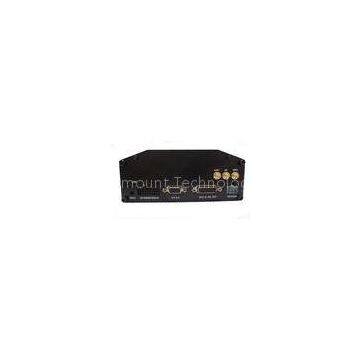

WIFI GPS 3G Mobile DVR Recorder With PAL NTSC / Black Box System
Negotiable
/ Piece
1 Piece(Min.Order)
- 0 Piece / Pieces per Month
- T/T L/C D/P D/A
- 7 days
You May Like
- Titanium Bipolar Plate for Battery Fuel Cells
- 0.5Microns Sintered Porous Ti Plate for PEM Electrode
- Sintered Nickel Fiber Paper Nickel Felt For GDL
- Ultra-thin 0.6mm Titanium Porous Transfer Layer for Hydrogen
- Nickel Mesh Anode in AEM Electrolyzer
- Pure Titanium Electrode Porous Fiber Felts For PEM Fuel Cell
Product Details
Brand Name: | Fortunemount | Place of Origin: | China | Model Number: | MCH4GWW |
Product Description
Certification:CE,ROHS, FCC
WIFI GPS 3G Mobile DVR Recorder With PAL NTSC / Black Box System
Feature:
Special function: Mobile data,BDS,GPS data,G-Sensor ,wide voltage,WIFI/3G,mobile DVR player,central management software,SDK etc. Compression algorithm ideal: H.264 High Profile compression algorithm,30% decrease of stream due to advanced space-time filtering technology. Playback quality: support 4ch D1,4ch 960H,8ch D1 real-time recording Main and Sub Stream: Main stream for local storage, ensure image quality;Sub-stream for real-time network transmission, easy to solve bandwidth bottleneck problem. Mobite monitor: Support various mobile monitoring(iPhone,Windows Mobile,BlackBerry,Symbian,Android) Display: support TV output,taking the lead in HD resolution technology. Operation interface: similar to Windows operating style, easy to get started with powerful mouse right-click function. Network: Powerful network services (support DAS,DHCP,PPPOE,FTP,DNS,DDNS,NTP,UPNP,EMAIL, IP permissions, IP searches, Alarm Center, etc.) and perfect support (WEB, Client, SDK), easy to achieve interoperability. Browsers: Support multiple web browsers (ie,chrome,firefox, safari) Remote Access: With its own domain name service functions (ARSP), and one key to remote monitoring,monitoring becomes easy and enjoyable. 3322 (Greek network), dyndns, oray (peanut shells), myq-see and other Domain Name Services are also provided. Differentiation: Boot screen free replacement, more than twenty languages, over 10 sets of GUI interface, ten kinds of remote control, available in dozens of button panel, which make our products different from others. Others: Perfect circuit protection, unique triple watchdog function, ensure that the equipment never crashes;With unique black box technology, the whole process can be monitored, which greatly reduces maintenance costs.Ø 4 channel Video Input
Ø support 1*HDD Storage;( HDD maximum 2T)
Ø Support Wifi;
Ø Support 3G; ( support EVDO & WCDMA & TD-SCDMA)
Ø Not support GPS;
Ø Not Support G-Sensor;
Specifications:
Model | MCH4GWW | |
system | Main processor | Hi3520D |
Operating system | Embedded LINUX operating system | |
System resources | Simultaneous multi-channel real-time recording, playback, network operation, USB backup | |
interface | user interface | support 16-bit true color graphical menu interface and mouse operation |
preview screen | 1/4 | |
video | vdieo standards | PAL(625line,50f/s);NTSC(525line,60f/s) |
vdieo compression | H.264(Main Profile) | |
display quality | Monitor:D1 | |
play quality | 960H/D1/Half-D1/CIF/QCIF | |
encode capacity | 4ch 960H real-time | |
decode capacity | 1ch 960H real-time | |
motion detect | Zones: 392(22*18)detection zones per window,multi-level sensitivity | |
audio | audio compression | G.711A |
bidrectional talk | supported | |
Record & playback |
record mode | manual>alarm>motion detection>timing |
local playback | Any channel playback simultaneously(1-4ch) | |
search mode | Time/calendar/event/channel search | |
Storage & backup |
space occupation | video:CIF 4~5G/ day*channel, D1 8~10G/ day*channel; audio:691.2M/ day*channel |
record storage | HDD,network | |
backup mode | Network backup,USB HDD,USB writer,U disk | |
interface | video input | 4ch |
video output | 1ch RCA (1.0Vp-p,75Ω),1ch for cable | |
audio input | 4ch | |
audio output | 1ch (200-3000mV,5K) | |
alarm input | 4ch(multiplexing vehicle signal) | |
alarm output | 2ch | |
RJ45 interface | no | |
RS485, RS232 | One RS485,one RS232 | |
USB | One USB | |
HDD | One SATA port,max.4T | |
Mobile i |
