Certification:CE,ISO9001

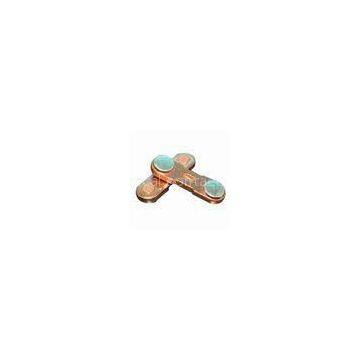

Rivet Contact Assembies , With Copper Stamping Parts By Riveting
Metal stamping parts and silver electrical contacts assembled by Riveting
Quick Detail:
| Name |
Rivet Contact Assembies other name: electrical contacts assembly , silver contacts assembly, contacts assembly , electrical contacts riveting , silver contacts riveting |
Application |
Used for micro switches for radio and communication, and for low current switches and relays. |
| Contact size |
F Dia.4.0*1.2(0.3)+2.0*3.0 Head diameter:4.0mm Head thickness:1.2mm AgNi silver contact thickness:0.3mm Foot diameter:2.0mm Foot length:3.0mm |
Feature |
High conductivity, low strength and hardness, low and stable contact resistance. |
| Material |
Pure Ag silver wire/copper wire Contact material: Pure Ag silver Rivet Body and base material: ETP copper T1 ,T2... Brass for metal stamping plate |
Certificate | ISO9001,CE,ts16949 |
Characteristics and Applications for pure Ag contact material
Contact Material in Huano:Type 5
Pure Ag
Pure Ag Properties
High conductivity, low strength and hardness, low and stable contact resistance.
Main applications for pure Ag contact material according to its properties:
Used for micro switches for radio and communication, and for low current switches and relays.
Delivery forms:
Pure Ag silver Wire,Pure Ag silver tips or Pure Ag silver rivet
What are electrical contacts?
The contact is also called a tip, point, finger, wedge, button or segment.A single or multi-pole electrical product that contains movable and stationary contacts,
often including screws, springs and possibly other hardware is called a kit or set.
A contact opens and closes
(makes and breaks) to engage or interrupt an electrical circuit. They are usually used for switches,
relays, contactors and motor starters etc.
An electrical contact is defined as the interface between the current-carrying members of electrical/
electronic devices that assure the continuity of electric circuit, and the unit containing the
interface. The current-carrying members in contact, often made of solids, are called contact
members or contact parts. The contact members connected to the positive and negative circuit
clamps are called the anode and cathode, respectively.
Electrical contacts provide electrical connection and often perform other functions. The
primary purpose of an electrical connection is to allow the uninterrupted passage of electrical
current across the contact interface. It is clear that this can only be achieved if a good metalto-
metal contact is established. The processes occurring in the contact zone are complex and not
fully explained within the limits of present knowledge. Although the nature of these processes may
differ, they are all governed by the same fundamental phenomena, the most important being the
degradation of the contacting interface and the associated changes in contact resistance, load,
temperature, and other parameters of a multipoint contact.
Common questions about Huano contacts?
1. Can you help customers for electrical contacts\' designing ?
We can help customers design the best electrical contacts by using different processing procedures to achieve good function and save costs according to the application,according to many years\' experience for electrical contacts manufacturing.
2. Can you help us to choose suitable contact material?
We can recommend the most suitable contact material to customers according to the electrical contacts\' application,base on a rich fund of knowledge of kinds of contact material
3. What kind of electrical contact material you can provide?
In Huono,we can provide Pure Ag ,AgSnO2 , AgSnO2ln2O3 , AgCdO , AgCuO10 , AgZnO , AgNi , AgCe , AgC , AgWC , AgW , CuW Etc contact material.
4. Can you provide free sampels for test?
As Huano Electrical Contacts Ltd
