Certification:CE,ROHS ,ISO9001

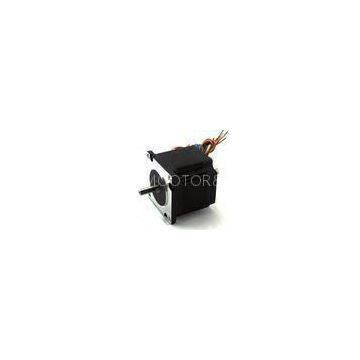

Industrial Nema Stepper Motor Hybrid 6 Lead , 57MM for carving machine
Nema 23 Hybrid Stepper Motor Model Number: JK57HS,57BYGH Phase: 2 Phase Lead Wire (No.): 4 or 6 wire Structure: Hybrid Step Angle: 1.8° Motor Height: 57mm Rated Current: 1 - 5A Holding Torque: 0.39 Kg.cm - 2.8 Kg.cm Function: Control Speed: Low speed Usage: Industrial Shape: Square Applications:Use for robots stepper motor, electronic automatic equipment stepping motor , medical instrument stepping motor,advertisementing instrument stepper motor, lighting& audio equipment stepper motor ,printer stepper motor, textile machinery stepper motor.Cnc router stepper motor.high torque stepping motor Chinese manufacturer , nema23 carving machine step motor , nema34 cnc router stepper motor
Description:
NEMA23 stepping motor , 57mm square stepper motor .
1.5N.m Stepper motor , high torque stepper motor with 57mm size .
1.8N.m stepping motor ,
Applications:
Use for robots stepper motor, electronic automatic equipment stepping motor , medical instrument stepping motor,advertisementing instrument stepper motor, lighting& audio equipment stepper motor ,printer stepper motor, textile machinery stepper motor.Cnc router stepper motor.
Specifications:
|
Model No. |
Step Angle |
Motor Length |
Current /Phase |
Resistance /Phase |
Inductance /Phase |
Holding Torque |
# of Leads |
Detent Torque |
Rotor Inertia |
Mass |
|
( °) |
(L)mm |
A |
Ω |
mH |
N.m |
No. |
g.cm |
g.cm² |
Kg |
|
|
JK57HS41-1006 |
1.8 |
41 |
1 |
5.2 |
5.5 |
0.39 |
6 |
250 |
150 |
0.47 |
|
JK57HS41-2006 |
1.8 |
41 |
2 |
1.4 |
1.4 |
0.39 |
6 |
250 |
150 |
0.47 |
|
JK57HS41-3006 |
1.8 |
41 |
3 |
0.63 |
0.6 |
0.39 |
6 |
250 |
150 |
0.47 |
|
JK57HS41-2804 |
1.8 |
41 |
2.8 |
0.7 |
1.4 |
0.55 |
4 |
250 |
150 |
0.47 |
|
JK57HS51-1006 |
1.8 |
51 |
1 |
6.6 |
8.2 |
0.72 |
6 |
300 |
