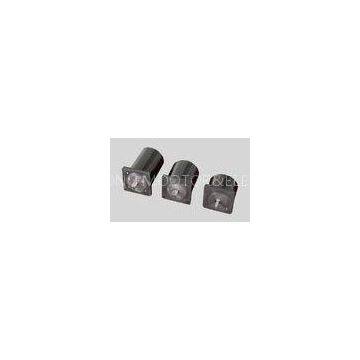

High Speed Nema Stepper Motor Hybrid 5 Phase 90 mm 0.72degree

Delivery Time:FOR SAMPLES , 7-10 days For batch . 15-25days.
Certification:CE,ROHS ,ISO9001

High speed Nema Stepper Motor Hybrid 5 Phase 90 mm 0.72degree

  Model Number:90BYG550   Phase: 5 Phase   Structure: Hybrid   Step Angle:  0.72°    Holding Torque: 3.5 N.m- 7.5 N.m   Function: Control   Speed: Low or High speed   Usage: Industrial   Shape: round   Applications:Use for robots stepper motor, electronic automatic equipment stepping motor ,  medical instrument stepping motor,advertisementing instrument stepper motor, lighting& audio equipment stepper motor ,printer stepper motor, textile machinery stepper motor.Cnc router stepper motor

Applications:

Use for robots stepper motor, electronic automatic equipment stepping motor , medical instrument stepping motor,advertisementing instrument stepper motor, lighting& audio equipment stepper motor ,printer stepper motor, textile machinery stepper motor.Cnc router stepper motor.

Specifications:

Model No.	Step Angle	Motor Length	Current /Phase	Resistance /Phase	Inductance /Phase	rated Voltage	Holding Torque	Motor Weight
( °)	(L)mm	A	Ω	mH	V	N.m	Kg
90BYG550A	0.72	86	3	0.68	2.8	60-130	3.5	3.2
90BYG550B	0.72	116	3	0.93	4.7	60-130	5.5	4.6
90BYG550C	0.72	146	3	1.21	7.5	60-130	7.5	5.8

Dimensions:

(Unit=mm)

Wiring Diagram:

Matching Stepper motor Driver:
