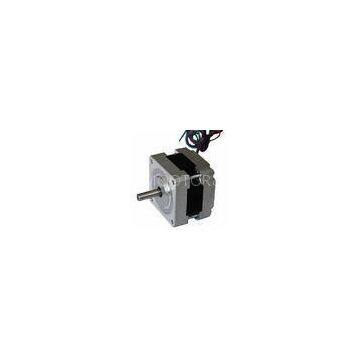

2 Phase Hybrid Stepper Motors NEMA 16 With 6 Wire 1.8 Degree For Industrial
Nema 16 Hybrid Stepper Motor Model Number: JK39HY,39BYG Phase: 2 Phase Lead Wire (No.): 4 or 6 wire Structure: Hybrid Step Angle: 1.8° Motor Height: 39mm Holding Torque: 0.65Kg.cm - 2.8Kg.cm Function: Control Speed: Low or High speed Usage: Industrial Shape: Square Applications:Use for robots stepper motor, electronic automatic equipment stepping motor , medical instrument stepping motor,advertisementing instrument stepper motor, lighting& audio equipment stepper motor ,printer stepper motor, textile machinery stepper motor.Cnc router stepper motorDescription:
1.8 degree Size 39mm High Torque Hybrid stepper motor.
39mm size stepper motor ,
NEMA16 stepping motor,
Small stepping motors,
2 phase 39mm stepper motor
Stepper motor 39mm size
Hybird Stepper Motors
1) CE and RoHS approved
2) We can develop customer design version
Applications:
Use for robots stepper motor, electronic automatic equipment stepping motor , medical instrument stepping motor,advertisementing instrument stepper motor, lighting& audio equipment stepper motor ,printer stepper motor, textile machinery stepper motor.
Cnc router stepper motor.
Specifications:
|
Model No. |
Step Angle |
Motor Length |
Current /Phase |
Resistance /Phase |
Inductance /Phase |
Holding Torque |
# of Leads |
Detent Torque |
Rotor Inertia |
Mass |
|
( °) |
(L)mm |
A |
Ω |
mH |
g.cm |
No. |
g.cm |
g.cm² |
Kg |
|
|
JK39HY20-0404 |
1.8 |
20 |
0.4 |
6.6 |
7.5 |
650 |
4 |
50 |
11 |
0.12 |
|
JK39HY20-0506 |
1.8 |
20 |
0.5 |
13 |
7.5 |
800 |
6 |
50 |
11 |
0.12 |
|
JK39HY34-0404 |
1.8 |
34 |
0.4 |
30 |
32 |
2100 |
4 |
120 |
20 |
0.18 |
|
JK39HY34-0306 |
1.8 |
34 |
0.3 |
40 |
20 |
1300 |
6 |
120 |
20 |
0.18 |
|
JK39HY38-0504 |
1.8 |
38 |
0.5 |
24 |
45 |
2900 |
